xTool P3 IR Module

• Grades: 9th+
• Number of Students: NA
• Number of Lessons: NA – No formal lessons included
• Hours of Content: NA – No structured lesson hours included
• Additional Resources: User Guide

Highlights:

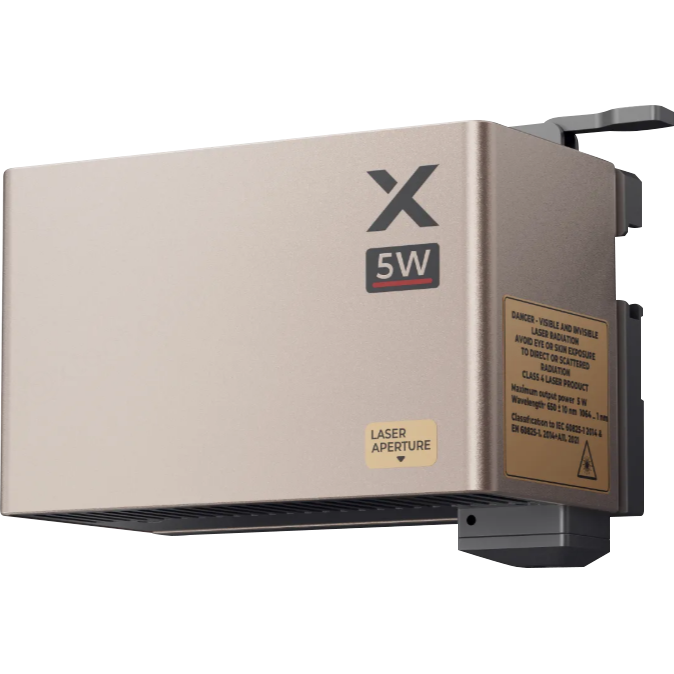

Expand the capabilities of your xTool P3 with the powerful 5W IR Laser Module. This upgrade is specifically designed to process materials that are challenging for conventional diode or CO2 lasers. With a wavelength of 1064nm, this infrared laser penetrates deep into the surface structure, enabling the finest engravings on metals and plastics, all without the need for additional sprays or pre-treatments.

• Precise Infrared Engraving: Create detailed designs and markings with a 5W infrared laser.

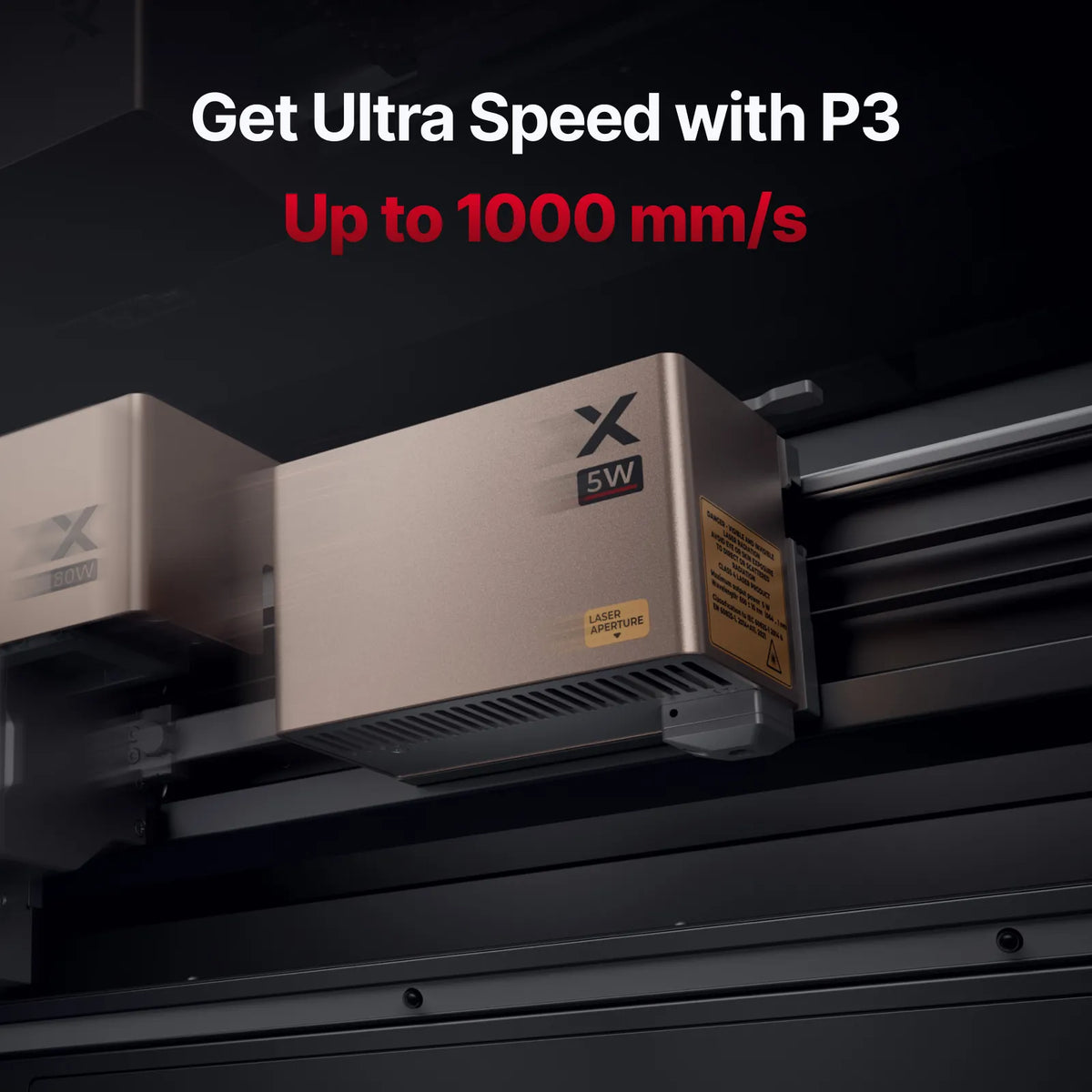

• Fast Processing: Engrave at speeds up to 1,000 mm/s and score at up to 300 mm/s.
• Fine Detail: Features a 0.03 mm red spot size for precise positioning and detailed work.
• Versatile Material Compatibility: Suitable for engraving and scoring a variety of materials, including metals and plastics.
• Large Processing Area: Supports workpieces up to 650 × 426 mm with a maximum material height of 180 mm.
• Easy Software Integration: Works with xTool software for design setup, material selection, processing, and calibration.
• Powered by P3: Draws power directly from the xTool P3 and requires no separate power supply.
• Calibration Support: Includes a focus block and art scratch paper to assist with Z-axis and X/Y-axis calibration.

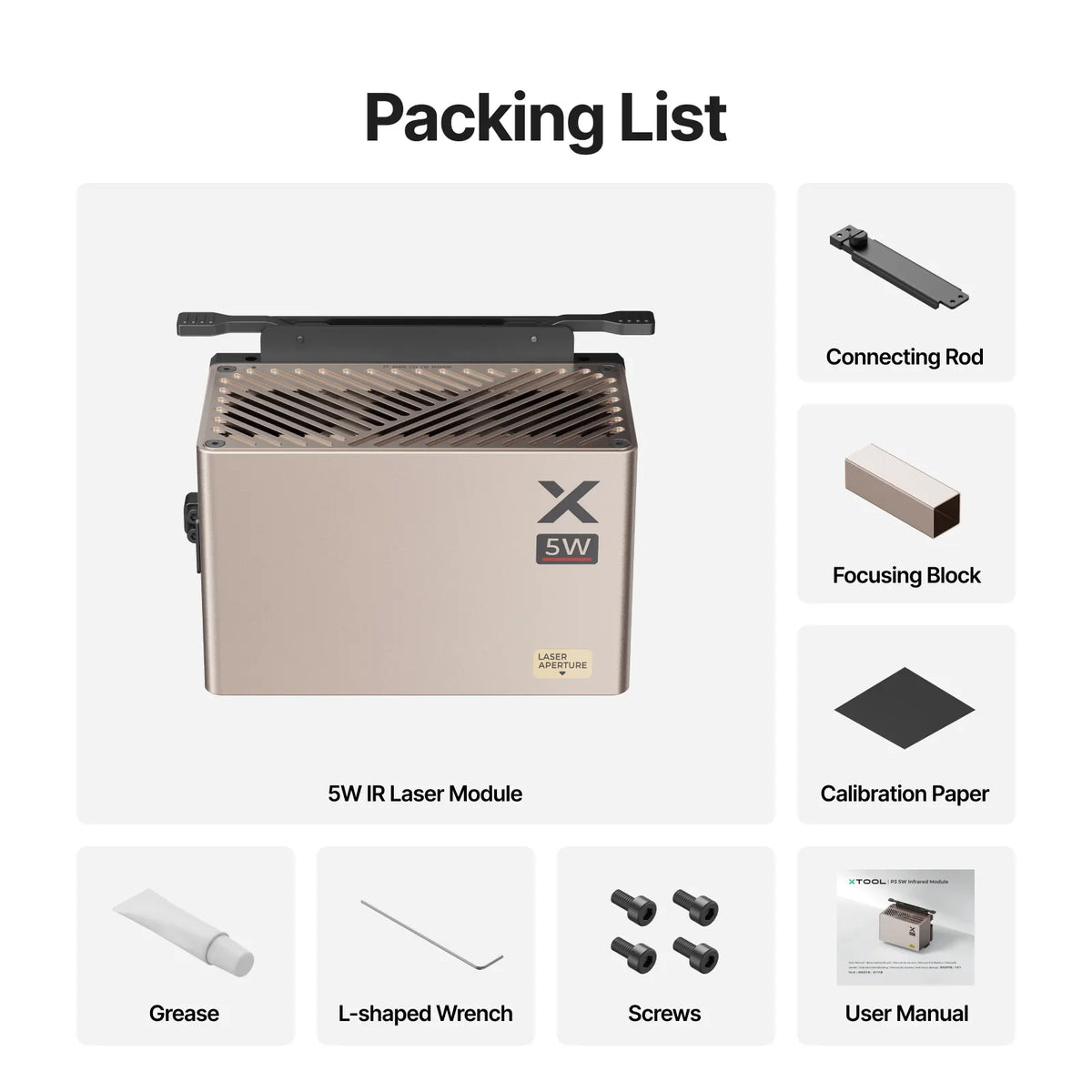

What’s Included:

• 1x 5W IR Laser Module
• 1x Connecting Rod
• 1x Focusing Block
• 1x Calibration Paper
• 1x Grease
• 1x L-shaped Wrench
• 4x Screws
• User Manual

Technology Requirements/Specifications:

Special Notes and Considerations:

xTool software and a compatible xTool P3 are required for operation.

xTool P3 laser engraver is sold separately.
