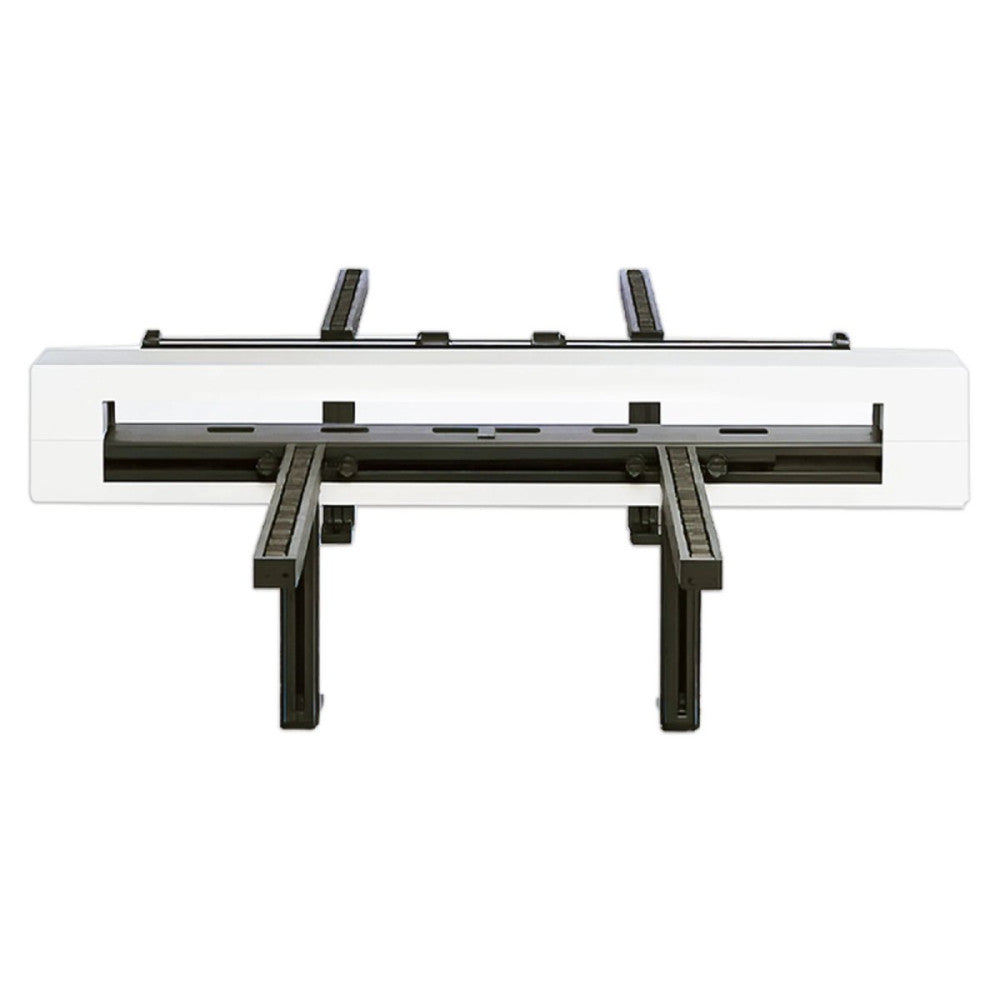

xTool P3 Automatic Conveyor Feeder Box

• Grades: 9th+
• Number of Students: NA
• Number of Lessons: NA – No formal lessons included
• Hours of Content: NA – No structured lesson hours included

• Additional Resources: Quick Start Guide

Highlights:

xTool P3 Automatic Conveyor Feeder is an intelligent conveyor module designed for automatic material feeding when working with the xTool P3 laser engraver. It expands the standard working area of the device to 610 × 1300 mm (24.01″ × 51.18″) and supports workpieces up to 26 mm thick. Thanks to the built-in synchronization system with the camera and LiDAR sensors, the conveyor ensures precise positioning, seamless pattern alignment, and continuous processing of long parts. With the installation of additional rails, the length of the fed material becomes virtually unlimited.

• The First Full-Size Conveyor Preview: Offers a complete "AI Seamless Tiling Preview," eliminating the blind spots of a partial preview.
• Easy Setup with Integrated Design: A one-time installation base and detachable suspended rails, requiring no support tables for standard rails.
• Time-Saving Automated Setup: Features automatic material clamping, automatic homing, and an automatic preview.
• Almost 2x Larger Work Area & Thicker Materials: Supports a 24.01" x 51.18" work area with 3-axis (X+Y+U) motion control, a max 26mm material thickness, and 200mm/s speed.

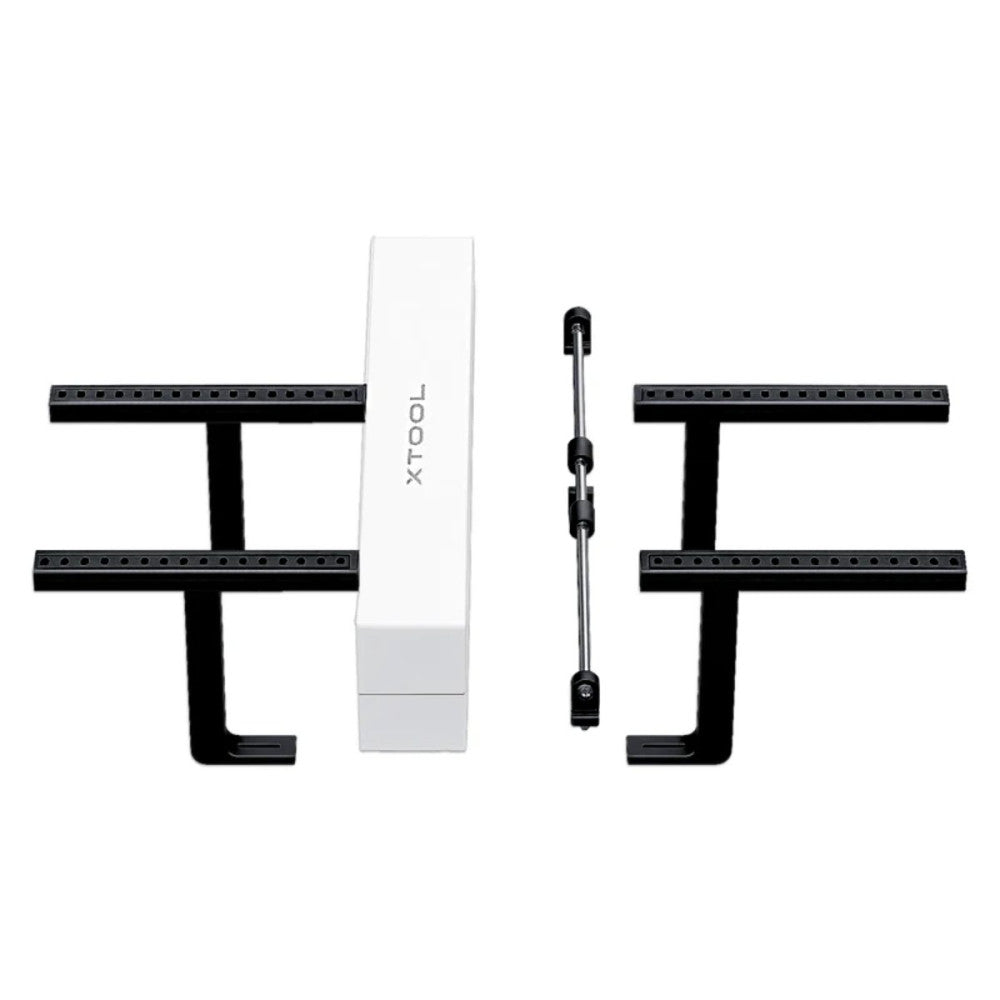

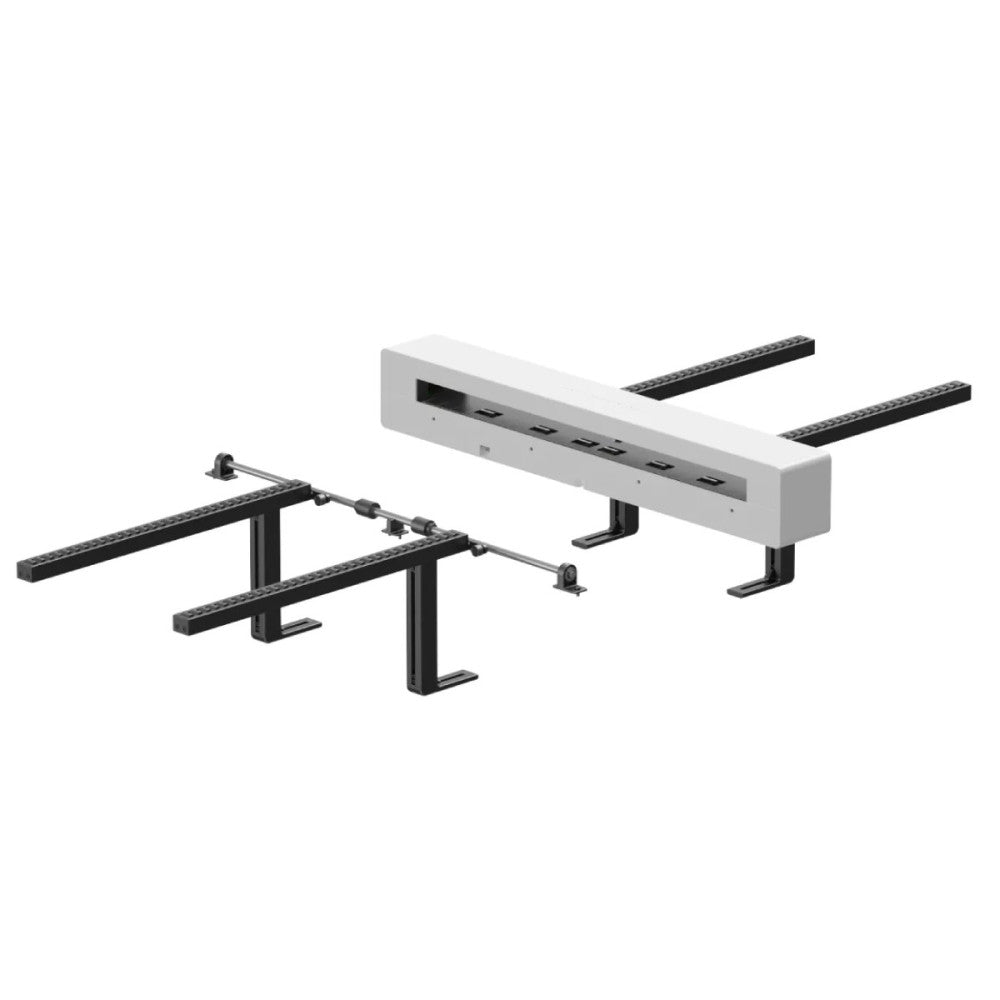

What’s Included:

• 1 × Conveyor Feeder
• 1 × Connection Cable
• 1 × Linear Shaft
• 1 × Fixing Block
• 2 × Front Support Bases
• 2 × Rear Support Bases
• 2 × Front Conveyor Rails
• 2 × Rear Conveyor Rails
• 1 × Smoke Shield Strip
• 1 × Level
• 10 × M4 × 10 Screws
• 10 × M3 × 10 Screws
• 1 × 2.5 mm Screwdriver
• 1 × 2.0 mm Screwdriver
• 1 × Sticker
• 1 × Quick Start Guide
• 1 × Safety Instructions

Technology Requirements/Specifications:

• Material Preview: Entire Material Preview
• Feed Material to the Start Position: Auto Feed
• Clamp Material: Auto Clamp
• Max. Speed: 200mm/s (160mm/s under heavy loads)
• Max. Placeable Material Width: 24.01" / 610mm
• Min. Placeable Material Width: 4" / 101.6mm
• Max. Placeable Wood Thickness: 1.02" / 26mm
• Max. Placeable Acrylic Thickness: 0.78" / 20mm
• Supported Materials (Hard): Wood, Acrylic, Fiberboard
• Supported Materials (Soft): Felt, EVA, Corkwood, Leather
• Dimensions: 29.92" x 3.94" x 4.49" / 760 x 100 x 114mm
• Weight: 8.73kg

Special Notes and Considerations:

***xTool P3 laser engraver is sold separately
