Snapmaker Ray 20W Laser Engraver and Cutter with Air Assist & Enclosure
- Grades: 9+
- Number of Students: NA
- Number of Lessons: NA
- Contact Hours: NA
Highlights:
Cutting-edge Laser Beam Combining Technology
- 20W Laser Module delivers superb performance with the most cutting-edge laser beam splitter and beam shaping optics.
Strong Cutting Capabilities
- Empowered by 20W power.
Achieve Cleaner Cuts with Air Assist
- Air gets pumped in.
- Blow the fumes away and prevent charring
- Keep the laser lens clean.
- Fumes get channeled out through grid table.
400mm x 600mm
- You can realize big projects like maps, furniture models, and door signs. Ray can be raised up with cylindrical foot, enabling you to work with a laser job as think as 160mm.
Industrial-grade Linear Rails
- Support work speed up to 500mm/s and long-lasting operation
500mm/s Max Work Speed
- Lighting fast laser cutting power!
Compatible with LightBurn
- Supports features like serial connection, movement control, and G-code generation. Access full sets of recommended parameters for common laser materials in LightBurn.
1000+ Laser Vectors in Luban
- Luban provides an extensive library of preset templates, including common patterns, shapes, and icons, for you to come up with a design in minutes.
What's Included:

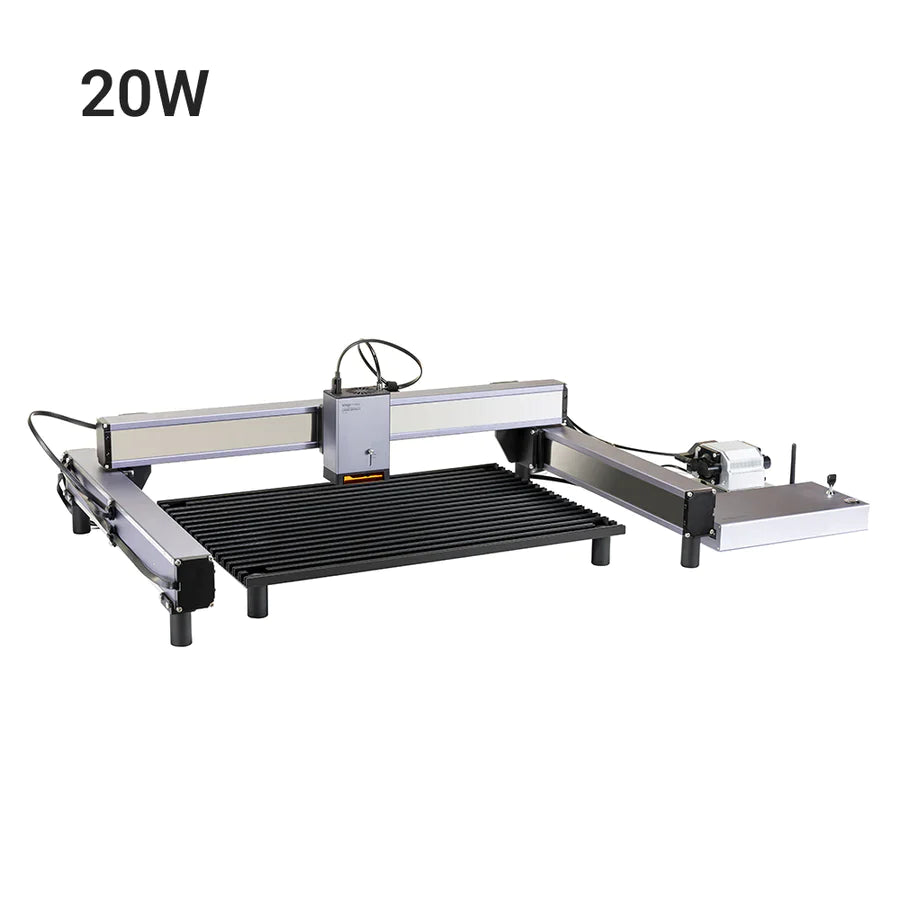

Ray 20W Laser Cutter:- 20W Laser Module × 1
- Power Module × 1
- Air Assist Pump × 1
- Air Tube × 1
- Cylindrical Foot × 8
- Foot Holder × 4
- M8 Air Tube Connector × 1
- M5 Air Tube Connector × 1
- Cable Tie × 2
- X-axis Linear Module × 1
- Y-axis Linear Module × 2
- Cable Clip × 14
- Quick-swap Toolhead Bracket × 1
- Cable Collector × 1
- USB Cable × 1
- Toolhead Cable × 1
- Right Linear Module Connector × 1
- Left Linear Module Connector × 1
- Foot Connector × 2
- Wi-Fi Antenna × 1
- Safety Key × 2
- Laser Engraving and Cutting Platform × 1
- AC Power Cable × 1
- microSD Card × 1
- Basswood Plywood × 1
- Laser Safety Goggles × 1
- Cotton Swab × 5
- Laser Lens Protector × 1
- M5 × 12 Screw × 36
- M5 × 16 Screw × 5
- H3.0 Hex Key × 1
- microSD Card Reader × 1
- Foot × 4

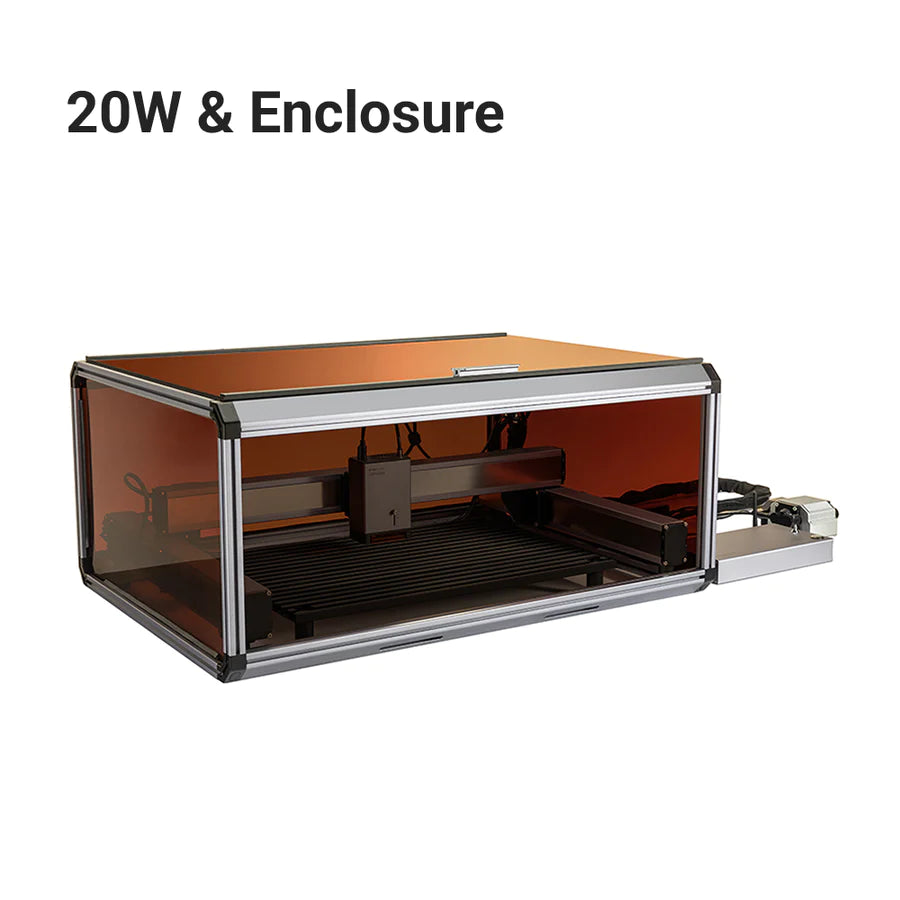

Enclosure:
- Enclosure Door × 1
- Front/Back Panel × 2
- Left Side Panel × 1
- Right Side Panel × 1
- Long Beam-1 (with air inlets) × 1
- Long Beam-3 (with Enclosure converter) × 1
- Long Beam-4 (with hinges) × 1
- Long Beam-2 (with hall switch) × 1
- M4 Wing Nut × 5
- Exhaust Fan Guard × 5
- Exhaust Fan × 1
- Profile Connector × 8
- Snap Bushing × 1
- Hose Connector × 1
- Enclosure Cable × 1
- Sealing Strip × 1
- Column × 4
- Short Beam (with LED strip) × 2
- Short Beam × 2
- Sealing Plug × 9
- H3.0 Hex Key × 1
- H2.5 Hex Key × 1
- Hose Clamp × 1
- Hose × 1
- M5 × 30 Screw × 18
- M4 × 40 Screw × 5
- M5 × 12 Screw × 18
- M4 × 12 Screw × 4
- Cord Collecting Strip × 1
Technical Specifications:
Performance:
- Laser Module Output Power: 20W
- Laser Electric Power: 65W
- Machine Power (Enclosure excl.): 140W
- Maximum Thickness of One-pass Cutting: 10mm Basswood Plywood
- Maximum Work Speed: 500mm/s
- Maximum Cutting Speed: 10mm/s
- Laser Spot Dimensions: 0.08mm × 0.1mm
- Laser Type: 450 - 460nm Semi-conductor
Dimensions:
-
Weight (Enclosure excl.): 14.6kg
-
Dimensions (Enclosure excl.): 849mm × 600mm × 278mm
-
Dimensions (Enclosure): 933mm × 665mm × 417mm
-
Maximum Workpiece Height: 160mm (with two sets of cylindrical feet)
- Work Area: 400mm × 600mm
Dimensions (Machine & Enclosure)
- 933mm x 665mm x 417mm
Supported Materials:
- Engraving Materials: Basswood, Pinewood, Plywood, Beech, Walnut, Bamboo, MDF, Painted Metal, Tinplate, Stainless Steel, Anodized Aluminum, Dark Glass, Slate, Brick, Ceramic, Jade, Marble, Shale, Leather, Fabric, Canvas, Corrugated Paper, Cardboard, Plastic, Dark Acrylic (Blue excluded)
- Cutting Materials: Basswood, Pinewood, Plywood, Beech, Walnut, Bamboo, MDF, Leather, Fabric, Canvas, Corrugated Paper, Cardboard, Plastic, Dark Acrylic (Blue excluded)
- Supported Design File: STL, SVG, JPEG, PNG, JPG, BMP, DXF, SNAPLZR
- Supported Processing File: NC
- Software: Luban, LightBurn
- Connection: Wi-Fi, USB
