PicoSolutions WASP 2040 Industrial X

PicoSolutions SKU: PIC-WU-9013
PicoSolutions WASP 2040 Industrial X - PicoSolutions - STEMfinity

PicoSolutions WASP 2040 Industrial X

PicoSolutions SKU: PIC-WU-9013
Inventory:
Support Packages
Regular price $6,000.00
/
  • Secure payments
Shipping calculated at checkout.

PicoSolutions WASP 2040 Industrial X

  • Grades: 9+



About:

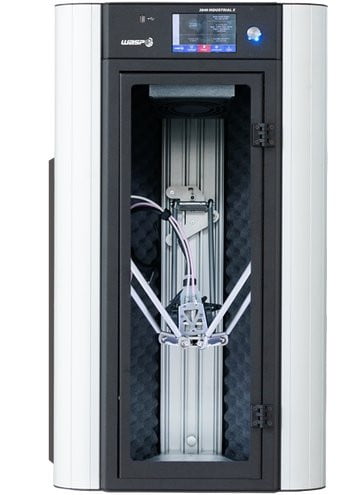

This ultra-fast and precise 3D printer comes standard with a Zen X dual extruder. Upgrade to a Flex extruder for flexible materials and add on an extended warranty and support package for additional training, design/slicing consultation, and more.

Printer Details:

PRINT SPECS:

Standard Configuration WASP Zen X Dual Extruder, MT Cartridge, 0.4mm nozzle diameter
Print Volume 200 x H 400 mm
Layer Height Min 50 micron
Print Speed Max 300 mm/s
Movement Speed Max 500 mm/s
Acceleration  10,000 mm/s
Heated Bed Temp Max 120


PHYSICAL DIMENSIONS:

Machine Dimensions  49cm x 44cm x 87cm
Shipping Dimensions 50cm x 58cm x 114 cm
Machine Weight 38 kg
Shipping Weight 42 kg


CONFIGURATION TOOLS:

WASP Zen X Extruder  Standard dual extruder
Nozzles Diameters 0.4mm, 0.7mm
Filament Size  1.75mm
Materials  ABS WASP, HIPS WASP, PA CARBON WASP, PMMA WASP, PLA, PETG, PC, PC+ABS, PPS, PVA, ASA


WASP Flex Extruder  Direct drive extruder for flexible materials down to shore 50A
 Nozzle Diameters 0.4mm
Filament Size  2.85mm
Materials TPE, PP, TPU


Technical Innovations:

FEATURES:

Hot & Cold Technology Heated chamber and cooling of the mechanics
Resurrection System The system resumes interrupted prints in case of accidental shutdown or sudden power failure.
Free Zeta System Measures the height of your print where the printing stopped to restart from this height.
Continuous Print When the used extruder runs out of filament, the print continues with the other extruder (if correctly loaded)
Bed Touch System

Automatic system that avoids the collision of the extruder on the build plate

Gcode Analyzer  Gcode error checking system
Auto Check System Automatic error recognition routine
Mesh Auto Calibration Mesh plate calibration
WIFI Machine connected to the network for monitoring and control
New GUI  New touch interface with bigger TFT display
Camera on-board For monitoring and time lapse
Remote Support WASP technicians can work remotely on your machine in case of issues


MECHANICS:

Frame & Cover  Aluminum, Steel, Polycarbonate, PU. All metal body for a stiff and vibration free precise machine
Printing Surface  Machined Aluminum
Wheel Movements Nylon wheels on anodized aluminum slides. PU steel core belts, resistant to high temperature
Insulation Polymer foam for thermo-acoustic insulation
Motors Stepper


Logistical Information:

SOFTWARE:

Operating System Windows, Mac, Linux
Slicing Software Compatible with all slicing software
File Type .stl, .obj, .gcode
Interface Pendrive USB, Wifi Network, Display TFT Touch


SUPPLY:

Input  110 V 50/60 Hz
Absorbed Power  WASP Zen X Extruder 120W
Absorbed Power Heated Bed 1000 W Max
Absorbed Power Room Heater 750W max / 300W average


TEMPERATURE:

Environment Use 68 - 86 F
Warehouse  32 - 86 F


Technical Support Package:

PicoSolutions technical support packages can be used for a variety of support including installation, training, design/slicing consultations, and technical support. Service Packages are based on hours so packages can never expire. If your printer needs to be returned to the PicoSolutions studio for maintenance, PicoSolutions will cover the round-trip shipping.



Note: Please see support package options towards the top of the page.



DELTA WASP 2040 PRO SUPPORT PACKAGES:

Level 1  3 hours of live 1:1 video assistance
Level 2  8 hours of live 1:1 video assistance
Level 3  16 hours of live 1:1 video assistance
