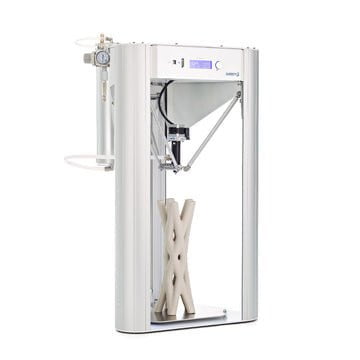

PicoSolutions WASP 2040 HYBRID

PicoSolutions SKU: PIC-WU-9006

PicoSolutions WASP 2040 HYBRID

PicoSolutions SKU: PIC-WU-9006
Support Packages
Regular price $4,500.00
  • Secure payments
Shipping calculated at checkout.

PicoSolutions WASP 2040 HYBRID

  • Grades: 9+



Accurate and reliable with all materials, WASP's Suspended Bowden driver for Spitfire Extruder makes printing faster and minimizes the weight on the mobile crew. Easily switch to your LDM (liquid deposition modeling) Extruder for printing ceramic materials! Resurrection and Free Zeta System allow you to continue your print from its last location should your printer lose power. Extend your warranty and add a support package for training, design/slicing consultation, and more.

Air compressor and hose necessary by not included.

Printer Details:


Standard Configuration FDM WASP Red Spitfire Extruder, LT Cartridge, 0.4mm nozzle diameter
Print Volume 200 x H 400 mm
Layer Height Min 50 micron
Print Speed Max 500 mm/s
Movement Speed Max 800 mm/s
Acceleration  15,000 mm/s
Heated Bed Temp Max 110

Standard Configuration LDM WASP 3.0 LDM Standard Extruder
Print Volume  200 x H 400 mm
Layer Height Min 0.5 mm
Print Speed Max 150 mm/s
Movement Speed Max 150 mm/s
Acceleration 500 mm/s2


Machine Dimensions  49cm x 44cm x 87cm
Shipping Dimensions Printer 50cm x 58cm x 101 cm
Shipping Dimensions Clay Kit 50cm x 26cm x 28cm
Machine Weight 25 kg
Shipping Weight Printer 30 kg
Shipping Weight Clay Kit 15kg


Red Spitfire Nozzle Diameters 0.4mm, 0.7mm, 1.2mm
Filament Size  1.75mm
Materials  PLA, PETG, ABS, PA Carbon

LDM Extruder Nozzle Diameters 1.5mm, 2mm, 3mm
Materials  Porcelain, Clay, Stoneware, Earthenware
Screw  Standard 3.0 LDM Extruder Screw

Technical Innovations:


Suspended Bowden This makes it possible to unload the inertia on the suspension bands and exponentially improve the quality and speed of printing.
Resurrection System The system resumes interrupted prints in case of accidental shutdown or sudden power failure.


Frame & Cover  Aluminum, Polycarbonate, PMMA
Printing Surface  Ground Aluminum, Wooden Bed for LDM
Wheel Movements Nylon on anodized aluminum profiles - TPU belts with stainless steel core resistant to high temperatures
Motors Stepper

Logistical Information:


Operating System Windows, Mac, Linux
Slicing Software Compatible with all slicing software
File Type .stl, .obj, .gcode
Interface SD Card, LCD Screen


Input  110 V 50/60 Hz
Absorbed Power FDM WASP Red Spitfire Extruder 60 W Max
Absorbed Power FDM Heated Bed 500 W Max
Absorbed Power LDM LDM 3.0 Standard Extruder 180W
Note* Air Compressor with minimum 8 Bar. pressure needed but not included


Environment Use 68 - 86 F
Warehouse  32 - 86 F


Included in Package
  • Delta WASP 2040 Pro
  • WASP Red Spitfire Extruder, LT Cartridge, 0.4mm nozzle diameter
  • LDM 3.0 Standard Extruder
  • 1.5mm, 2mm, 3mm LDM metal nozzle diameters
  • 1.2mm, 1.55mm LDM Plastic conical nozzle diameters
  • 3L Aluminum Tank for LDM
  • Tank Stand
  • Wooden Build Plate for LDM
  • Teflon Connecting Tube
  • Nylon Connecting Tube
  • 25lbs Porcelain
  • 1kg Spool PLA
  • SD Card with files and configurations
  • Manual
  • Gauge for LDM printing
Not Included in Package
  •  Air Compressor with minimum 8 Bar of Pressure
  • 8mm Connecting hose (length as you wish)
  • Push to Connect Tube Fitting Male Elbow - 8mm Tube OD x 1/4 NPT thread

Technical Support Package:

PicoSolutions technical support packages can be used for a variety of support including installation, training, design/slicing consultations, and technical support. Service Packages are based on hours so packages can never expire. If your printer needs to be returned to the PicoSolutions studio for maintenance, PicoSolutions will cover the round-trip shipping.


Level 1  3 hours of live 1:1 video assistance
Level 2  8 hours of live 1:1 video assistance
Level 3  16 hours of live 1:1 video assistance
