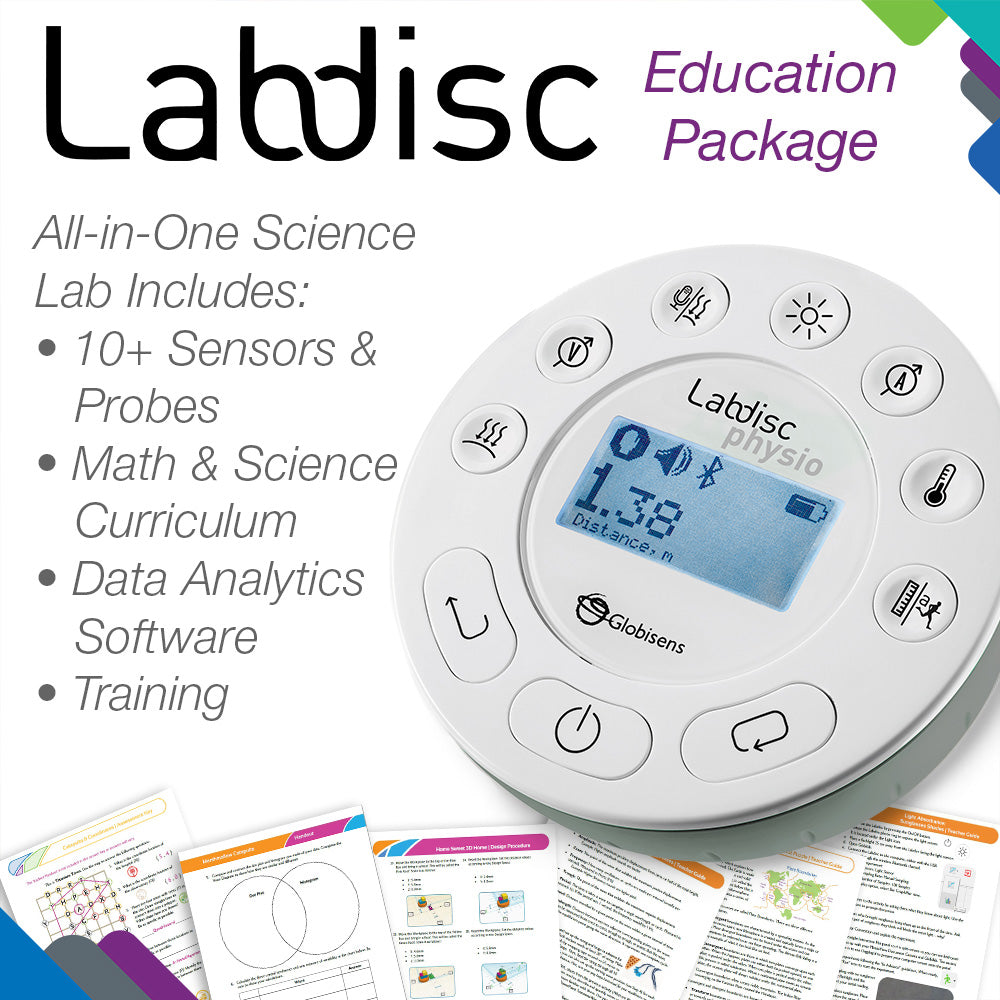

Labdisc Physio All-in-One Science Lab

Labdisc Physio All-in-One Science Lab

• Grades: K-12
• Number of Students: 1-4
• Number of Lessons: 100+
• Contact Hours: Unlimited
• Additional Resources: Lesson Plan Sample, Technical Specifications

Highlights:

From outdoor field studies to classroom experiments, the Physio Labdisc gives students the freedom to explore science wherever curiosity leads. Its all-in-one design eliminates the need for multiple tools or complex setups, so teachers can focus on guiding inquiry instead of managing equipment. With cross-curricular applications, Labdisc helps students connect concepts through real-world data collection and analysis. The Physio Labdisc has been optimized for physical science and physics classrooms by providing a collection of sensors ideal for those courses.

Built-in Sensors:
Accelerometer, Air Pressure, Ambient Temperature, Current, Distance, Light, Low Voltage, Microphone (Wave Forms), External Temperature, Sound (db), Voltage, Universal Input

Compatible with additional external sensors including a Force Accelerometer, Respiration, Magnetic Field, Voltage, Current, Heart Rate, and CO2 sensors.

Curriculum or Lesson Topics:

The Physio Labdisc also comes complete with a MyStemKits Starter Plan allowing you to unlock up to five kits and their curriculum, including all compatible Labdisc lessons. Choose from hundreds of ready-to-3D print models, virtual simulations, and standards-driven lesson plans for K-12 STEM education such as:

• Light Absorbance: Sunglass Shades (1)

• Lime Light (4)
• What are Waves? (4-6)

• Citrus Circuits (5-6)

• Heat, Temperature, and Conduction (6-8)

• Series & Parallel Circuits (6-12)

• Lenz Law: Electricity & Magnetism (7-12)

• Boyle's Law: Pressure & Volume (9-12)

• Half-Atwood Machine (9-12)

Standard Alignments:

Curriculum is aligned to NGSS, Common Core, and State Standards in every lesson.

What's Included:

• Labdisc Physio(1)
• Labdisc Accessories: Luer Lock Tube for Air Pressure Sensor, Banana Cables, Temperature Probe, and Charging Cable
• Self-Paced Online Training Course

• MyStemKits Starter Plan (1 year limited access)

• 2-Year Warranty

• US-based Customer Support

• Free Globilab Software for PC, iOS, or Android

Technology Requirements/Specifications:

Compatibility & Connectivity:
Data can be read directly from the Labdisc screen for most sensors.
Connect to Globilab Software for additional features. See Section below for details.
Data can also be cached on the device for analysis in Globilab afterwards.
USB 2.0
Bluetooth 2.0 + EDR

Built-in Sensors:
Accelerometer (3 Axis): –8 to +8 g (±3%)
Air Pressure: 0 to 300 kPa (±2.5 kPa)
Ambient Temperature: –10 to 50 °C (±1 °C)
Current: –1 to 1 A (±2%)
Distance (Motion): 0.4 to 10 m (±2%)
Light: 0 to 55,000 lx (±15%)
Low Voltage: –500 to 500 mV (±2%)
Microphone: 0 to 5 V (N/A)
External Temperature: –25 to 125 °C (±2 °C)
Universal Input (2 ports): 0 to 5 V (±2%)
Voltage: –30 to 30 V (±2%)

Data Collection:
Up to 24,000 samples per second
12-bit resolution
Internal memory: 1,000,000 samples or 127 experiments

Power & Physical Specs:
Rechargeable LiPO battery (3.6 V)
Battery life: 150+ hours
Size: 132 mm (diameter) × 45 mm (height)
Weight: 300 g
Operating temperature: –10 °C to 50 °C
CE and FCC compliant

Software (GlobiLab):
Software for PC, Mac, Linux, iPad and Android. Limited compatibility with Chromebooks.
Live data or stored data download (up to 100 samples/sec)
Graphs, bar charts, tables, meters, and Google Maps integration
Customizable logging (sensor selection, sample rate, number of samples)
Interactive graph editing (markers, zoom, crop, color, legends)
Add text/images to graphs
Analysis tools: derivatives, regressions, FFT
Summary statistics (min, max, average, standard deviation)
Save, load, export to Excel, and print
Firmware updates via USB

Special Notes and Considerations:

Sensor Comparison By Labdisc Device
