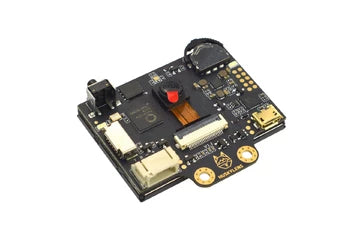

HUSKYLENS Pro

HUSKYLENS Pro

DFRobot SKU: DFR-SEN0336
Inventory:
Price
Regular price $49.90
Regular price Sale price $49.90
/
  • Secure payments
Shipping calculated at checkout.

HUSKYLENS Pro

  • Grades: 6+
  • Number of Students: 1-3
  • Number of Lessons: 8
  • Hours of Content: NA
  • Additional Resources: Layout Product Wiki Courses



Highlights:

HuskyLens K210 AI Machine Vision Sensor offers 7 built-in functions such as face recognition, object tracking, object classification, enabling seamless integration with Arduino and micro:bit for innovative projects without the need for complex algorithms.

Technology Requirements/Specifications:

Parameter Specification
Processor Kendryte K210
Image Sensor OV2640 / GC0328
Supply Voltage 3.3~5.0V
Current Consumption (TYP) 320mA @ 3.3V, 230mA @ 5.0V (Face recognition mode; 80% backlight brightness; fill light off)
Interface UART; I2C
Display 2.0-inch IPS screen with 320*240 resolution
Built-in Algorithms Face Recognition, Object Tracking, Object Recognition, Line Tracking, Color Recognition, Tag Recognition, Object Classification
Dimension 52mm x 44.5mm (2.05*1.75 inch)



Pinout



  • 4Pin Connector in UART Mode
Num Label Pin Function Description
1 T TX TX pin of HuskyLens
2 R RX RX pin of HuskyLens
3 - GND Negative (0V)
4 + VCC Positive (3.3~5.0V)
  • 4Pin Connector in I2C Mode
Num Label Pin Function Description
1 T SDA Serial data line
2 R SCL Serial clock line
3 - GND Negative (0V)
4 + VCC Positive (3.3~5.0V)
  • USB Connector
    • power supply for Huskylens
    • connect to the computer to upgrade the firmware
