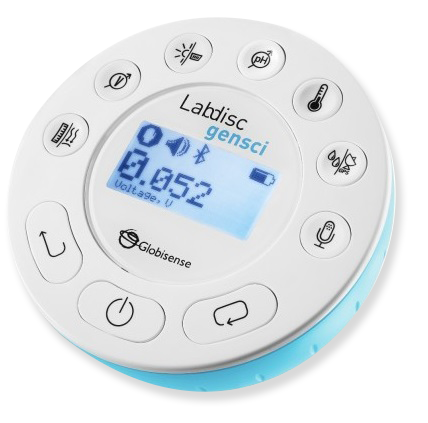

Labdisc Gensci Science Lab Classroom Set

Labdisc Gensci Science Lab Classroom Set

• Intended Grades: K-12
• Number of Students: 8-28
• Number of Lessons: 70+
• Contact Hours: NA
• Additional Resources: Technical Specifications, Product Brochure

Highlights:

From outdoor field studies to classroom experiments, the Gensci Labdisc gives students the freedom to explore science wherever curiosity leads. Its all-in-one design eliminates the need for multiple tools or complex setups, so teachers can focus on guiding inquiry instead of managing equipment. With cross-curricular applications, Labdisc helps students connect concepts through real-world data collection and analysis. The Gensci Labdisc has been optimized for general science classrooms and is ideal for K-8 or homeschool where you are looking for one device to tackle a little bit of every subject.

Built-in Sensors:
Air Pressure, Ambient Temperature, Current, Distance, External Temperature, GPS, Light, Microphone, pH, Relative Humidity, Sound Level, Voltage, Universal Input

Compatible with additional external sensors including a Force Accelerometer, Respiration, Magnetic Field, Voltage, Current, Heart Rate, and CO2 sensors.

Curriculum or Lesson Topics:

The Gensci Labdisc also comes complete with a MyStemKits Starter Plan allowing you to unlock up to five kits and their curriculum, including all compatible Labdisc lessons. Choose from hundreds of ready-to-3D print models, virtual simulations, and standards-driven lesson plans for K-12 STEM education such as:

• Shade Structures (K)

• Weather and Climate (3)

• Basil: Soil vs. Hydroponics (4-6)

• Citrus Circuits (5-6)
• Heat, Temperature, and Conduction (6-8)

• Planetary Temperatures (8)

• Boyle's Law: Pressure & Volume (9-12)

• Friction Forces (9-12)

Standard Alignments:

Everything is driven by NGSS and Common Core Standards. Additional state standards have been aligned for Texas, Florida, Georgia, and Ohio.

What’s Included:

• Labdisc Gensci (8)

• Labdisc Accessories (x8): Luer Lock Tube for Air Pressure Sensor, Banana Cables, Temperature Probe, pH Probe, and Charging Cable

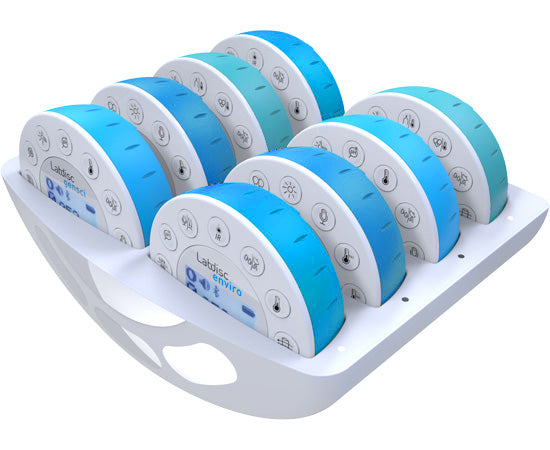

• Labdisc Charging Tray

• Self-Paced Online Training Course

• MyStemKits Starter Plan (1 year limited access x8 users)

• 2-Year Warranty

• US-based Customer Support

• Free Globilab Software for PC, iOS, or Android

Technology Requirements/Specifications:

Compatibility & Connectivity:
Data can be read directly from the Labdisc screen for most sensors.
Connect to Globilab Software for additional features. See Section below for details.
Data can also be cached on the device for analysis in Globilab afterwards.
USB 2.0
Bluetooth 2.0 + EDR or Bluetooth BLE

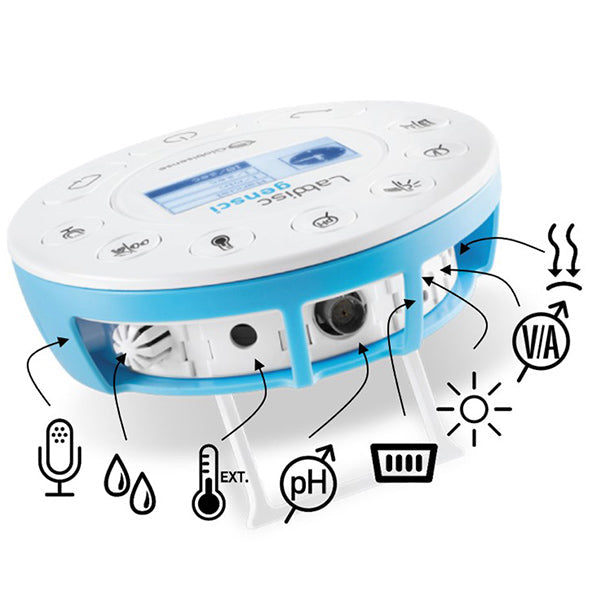

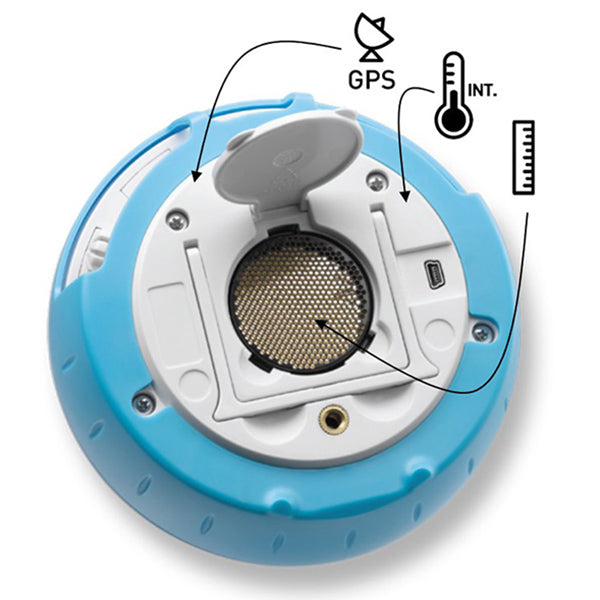

Built-in Sensors:
Air pressure: 0–300 kPa (±2.5 kPa)
Ambient temperature: –10 °C to 50 °C (±1 °C)
External temperature: –25 °C to 125 °C (±2 °C)
Current: –1 to 1 A (±2%)
Distance (motion): 0.4–10 m (±2%)
GPS: ±3 m accuracy
Light: 0–55,000 lux (±15%)
Microphone voltage: 0–5 V (±2%)
pH: 0–14 (±2%)
Relative humidity: 0–100% RH (±3.5% in 20–80%)
Sound level: 56–95 dBA (±4 dB)
Universal input: 0–5 V (±2%)
Voltage: –30 to 30 V (±2%)

Data Collection:
Up to 24,000 samples per second
12-bit resolution
Internal memory: 1,000,000 samples or 127 experiments

Power & Physical Specs:
Rechargeable LiPO battery (3.6 V)
Battery life: 150+ hours
Size: 132 mm (diameter) × 45 mm (height)
Weight: 300 g
Operating temperature: –10 °C to 50 °C
CE and FCC compliant

Software (GlobiLab):
Software for PC, Mac, Linux, iPad and Android. Limited compatibility with Chromebooks.
Live data or stored data download (up to 100 samples/sec)
Graphs, bar charts, tables, meters, and Google Maps integration
Customizable logging (sensor selection, sample rate, number of samples)
Interactive graph editing (markers, zoom, crop, color, legends)
Add text/images to graphs
Analysis tools: derivatives, regressions, FFT
Summary statistics (min, max, average, standard deviation)
Save, load, export to Excel, and print
Firmware updates via USB
