PicoSolutions Vertical Wind Turbine 2.0

PicoSolutions SKU: PIC-PS-3014-1
Inventory:
Levels
Regular price $24.99
/
  • Secure payments
Shipping calculated at checkout.

PicoSolutions Vertical Wind Turbine 2.0



About:

Explore Wind Energy with PicoSolution's Vertical Wind Turbine Lab! Construct this STEM kit from scratch and engineer it to make it power an LED, piezo buzzer, or just showcase the power on a standard multimeter! Use the Solar Panel to create a fully functioning hybrid! This turbine is made in the USA out of recycled plastics so it not only creates alternative energy but is also made of sustainable components locally! Each kit contains all the parts needed to build a fully functioning Vertical Wind Turbine!



Note: Please see kit level selection options towards the top of the page.

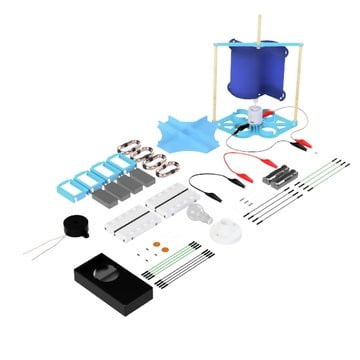

What Is Included?

Level 1

  • 1 Base
  • 1 Top
  • 2 Blades
  • 2 S-Foils
  • 3 Dowels 0.25” (6.25mm)
  • 1 Piezo Buzzer & LED
  • 1 Resistor 30 ohm
  • 1 DC Motor & Adapter 6V
  • 1 Alligator Clip Set (Red & Black)

Level 2

  • 1 Base
  • 1 Top
  • 1 Rotor Disc
  • 2 Blades
  • 2 S-Foils
  • 3 Dowels 0.25” (6.25mm)
  • 2 Piezo Buzzer
  • 1 DC Motor & Adapter 6V
  • 2 Alligator Clips
  • Vertical AC generator & Rectification Set
    • 1 Solderless Breadboard
    • 16 Male End Wires
    • 2 Capacitors
    • 4 Diodes
    • 4 Rare Earth Magnets
    • 4 Copper Coils 200 Wind
    • 1 Magnet Clip Set

Level 3

  • 1 Base
  • 1 Top
  • 2 Blades
  • 2 S-Foils
  • 3 Dowels 0.25” (6.25mm)
  • 2 Piezo Buzzer
  • 1 DC Motor & Adapter 6V
  • 1 Alligator Clip Set (Red & Black)
  • Vertical AC generator & Rectification Set
    • 1 Solderless Breadboard
    • 16 Male End Wires
    • 2 Capacitors
    • 4 Diodes
    • 4 Rare Earth Magnets
    • 4 Copper Coils 200 Wind
    • 1 Magnet Clip Set
  • 1 Multimeter
  • Circuits 101 8 DC Labs
    • 3 Resistors 10, 30, 100 Ohm
    • 2 AA Battery Holder
    • 1 Light Bulb 1.5V
    • 1 Light Bulb Stand
    • 1 Solar Panel 7.2V @ 200mA 1.44W
