EZ-Robot Revolution Roli
This item is temporarily on backorder and estimated to be available in late June or early July 2024. Please check back for updates.

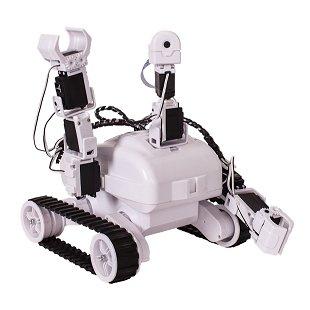

Roli is a very customizable planetary rover styled robot platform with 13 female EZ-Bit connections for additional EZ-Bits. Much like a space exploration vehicle, this robot was designed to be a workhorse and move across different surfaces. With a 7.4v LiPo batteries powering 2 motors, this robot platform has enough torque to tackle tough terrain. The wheels and treads are also adjustable in height which modifies the ground clearance. The included EZ-Robot EZ-B v4 Camera adds impressive vision tracking capabilities.
Customize this robot with additional EZ-Bits. Add a 2 Servo Arm with Gripper or Hexapod 2 Servo Leg for custom and creative functionality.
Education and Home
In the classroom or at home, EZ-Robot revolution has a big impact on education. Not only do students learn about robotics, they have fun doing it. With hundreds of tutorial videos, there are no questions left unanswered. The EZ-Robot community forum is busy with members helping to solve problems and invent new ideas. Personalizing EZ-Robot behaviours and actions teach students how robots walk, see, hear and interact with their surroundings. EZ-Robot Revolution has the same effect on the classroom as the Personal Computer did in 1985. With the growing field of robotics, students using EZ-Robot today will be prepared for a future in the upcoming industry.‚
Heavy Duty Servos
Includes digital heavy duty 15 kg/cm servo motors! The metal internals will withstand a high load.
- Operating speed: 0.24sec/60degree (7.4V)
- Stall torque: 15.0kg-cm/529 oz-in.(7.4V)
- Temperature Range: -20C to +60C
- Operating Voltage: 4.8V to 7.2V
- 3 pole ferrite
- Dual ball bearing
- All metal gears
- connector wire length: 32cm
- Futaba 3f (25 teeth) for driving spline/shaft
- 6.2mm spline (including teeth)
Auto Positioner
The secret to EZ-Robot is our EZ-Builder Software which includes hundreds of controls to add custom functionality to your robot. The Auto Position Control in EZ-Builder is used to rotate servos into custom positions (Frames). These Frames are linked to Actions to create animation scripts. The software will automatically calculate how to move servo positions between Frames for a stable transition. Like all EZ-Builder controls, this is another innovation by DJ Sures to help you build impressive robotics! The Auto Positioner can be used for Hexpods and Bipeds - or anything you can dream up!
EZ-B v4 Wi-Fi Robot Controller
The EZ-B v4 is the World's most powerful robot controller... It's a brain for your robot. The EZ-B v4 scales for beginner and advanced users. The EZ-B is two PCB's sandwiched together in a compact 2x2 inch package. For protection, the speaker and electronics are enclosed within a stylish white plastic shell with a speaker chamber for clear enhanced audio. For advanced users, the EZ-B may be removed from its casing and mounted directly in your custom robot. With the purchase of the EZ-B includes lifetime firmware upgrades and EZ-Builder Control Software. Some of the EZ-B v4 features:
- 200MHz 32-Bit Processing (120 MHz 32-bit Cortex M3 ARM Processor & 80 MHz Microchip PIC32)
- Small Size (2.1" x 2.2")
- WiFi connectivity (Ad-Hoc/Infrastructure/WEP/WPA/WPA2)
- Embedded Web Server
- Energy Efficient Digital Switching Power Supply
- Resettable fuse protection
- Reverse polarity protection
- 1 x Amplified Speaker for Speech and Music
- 8 x 5 volt tolerant Analog (ADC) ports
- 24 x 5 volt tolerant Digital ports (servos, PWM, and more)
- Up to 73 Servos (combining PWM and Dynamixel)
- Dynamixel AX-12 Servo Support
- 3 x i2c Port
- 1 x EZ-Robot Video Camera Port
- 3 x High Speed UART Ports
EZ-Builder Software
If hardware is the heart of your EZ-Robot, then software is the soul. Introducing EZ-Builder Robot Control Software. Your robot is controlled by the World's most powerful and scalable robot control software. EZ-Builder takes a productive and unique approach to programming your robot, EZ-Builder uses graphical controls which represent features and functions. Simply add new controls to your robot and enable behaviors such as Camera Tracking, Speech Recognition, Wii Controller, Joystick, GPS, Accelerometer, HTTP Server, GAIT Positioning, and hundreds more!

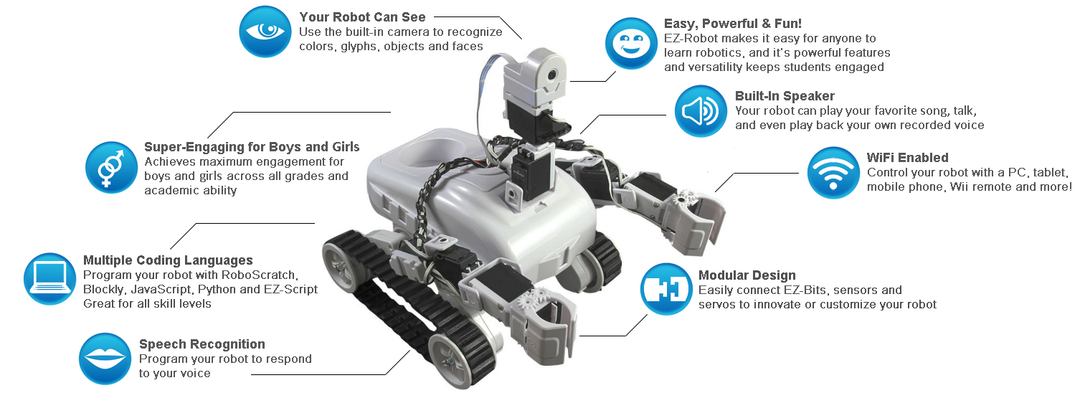

Move With Ease
Roli is ready for any terrain. His treads allows him to travel long distances easily and confidently without stumbling. Without the need for wheels, there is little chance of getting stuck inside or out.
Change It Up
Roli is the master of possibility. With 9 EZ-Bit Expansion ports, anything is possible! Want to add arms, more sensors or even another head? It's all up to you!
Carry Your Soda and More
Roli is here to work! His Payload Adapter is made to carry various objects to where they are needed. His beverage adapter even allows him to bring a cool soda to his guests. Remove the beverage adapter and his payload storage increases.
Includes:
- 1 EZ-B v4 WiFi Robot Controller
- 1 EZ-Builder Control Software with Apps
- 1 Rover Body - Shell
- 1 Rover Chassis
- 2 3 Servo Arm with Gripper
- 1 Clip 'n' Play Lever Servo
- 1 Clip 'n' Play Rotating Servo
- 1 LiPo Battery 7.4VDC 1300mAh
- 1 LiPo Balance Battery Charger
- 1 EZ-Robot EZ-B v4 Camera
- 1 2.5 Amp Motor Controller
- 1 Wire Spiral Wrap Pack
Product Dimensions:
- Width: 23 cm
- Length: 24 cm
- Height: 32 cm
- Weight: 1.812 kg
‚
