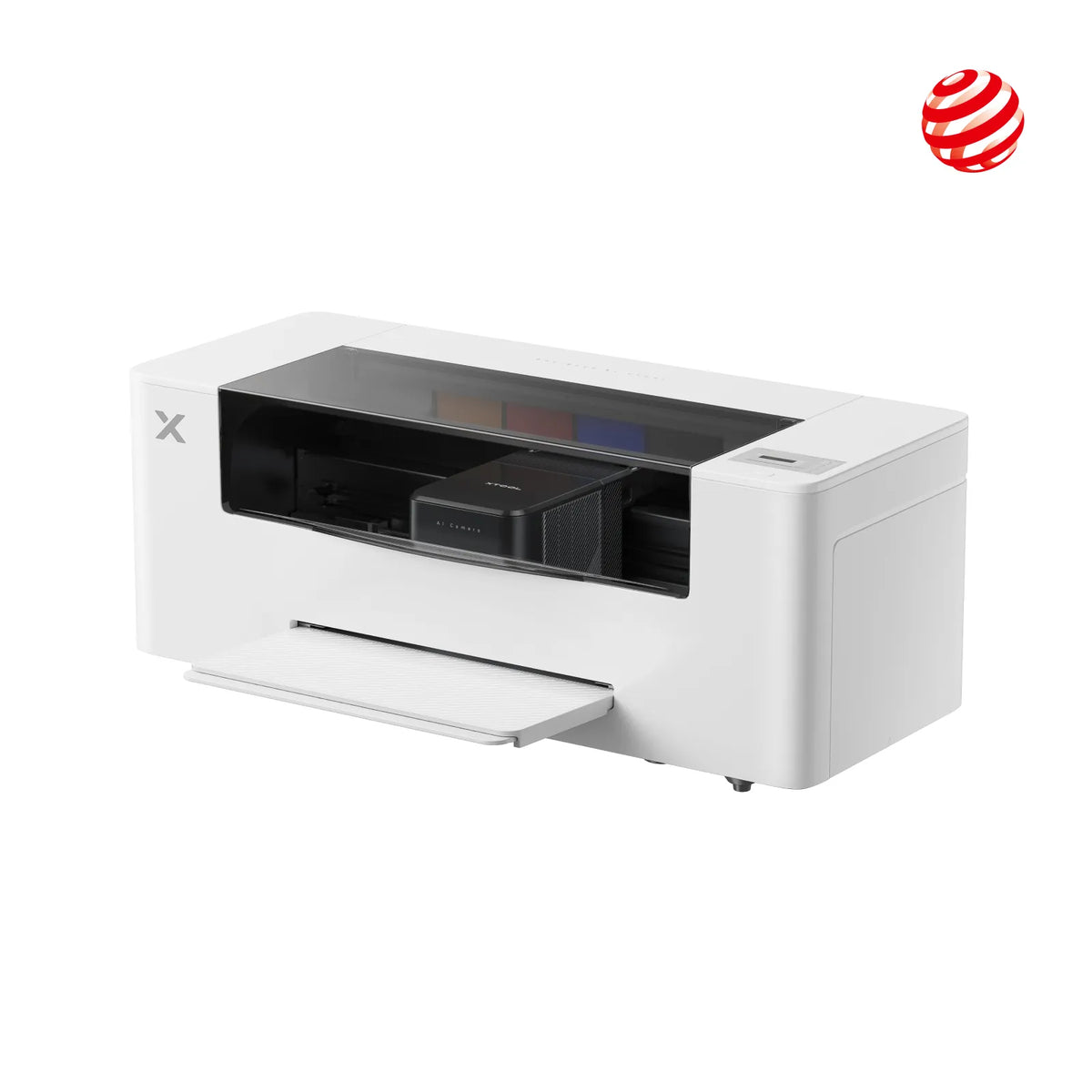

xTool Apparel Printer Plus: One Click DTF Printer, Effortless Customization for Business
-
Grades: 9+
-
Number of Students: NA
-
Number of Lessons: NA – No formal lessons included
-
Contact Hours: NA – No structured lesson hours included
Highlights:
-
All Colored Fabrics: Stunning prints on all Apparel with all designs.
-

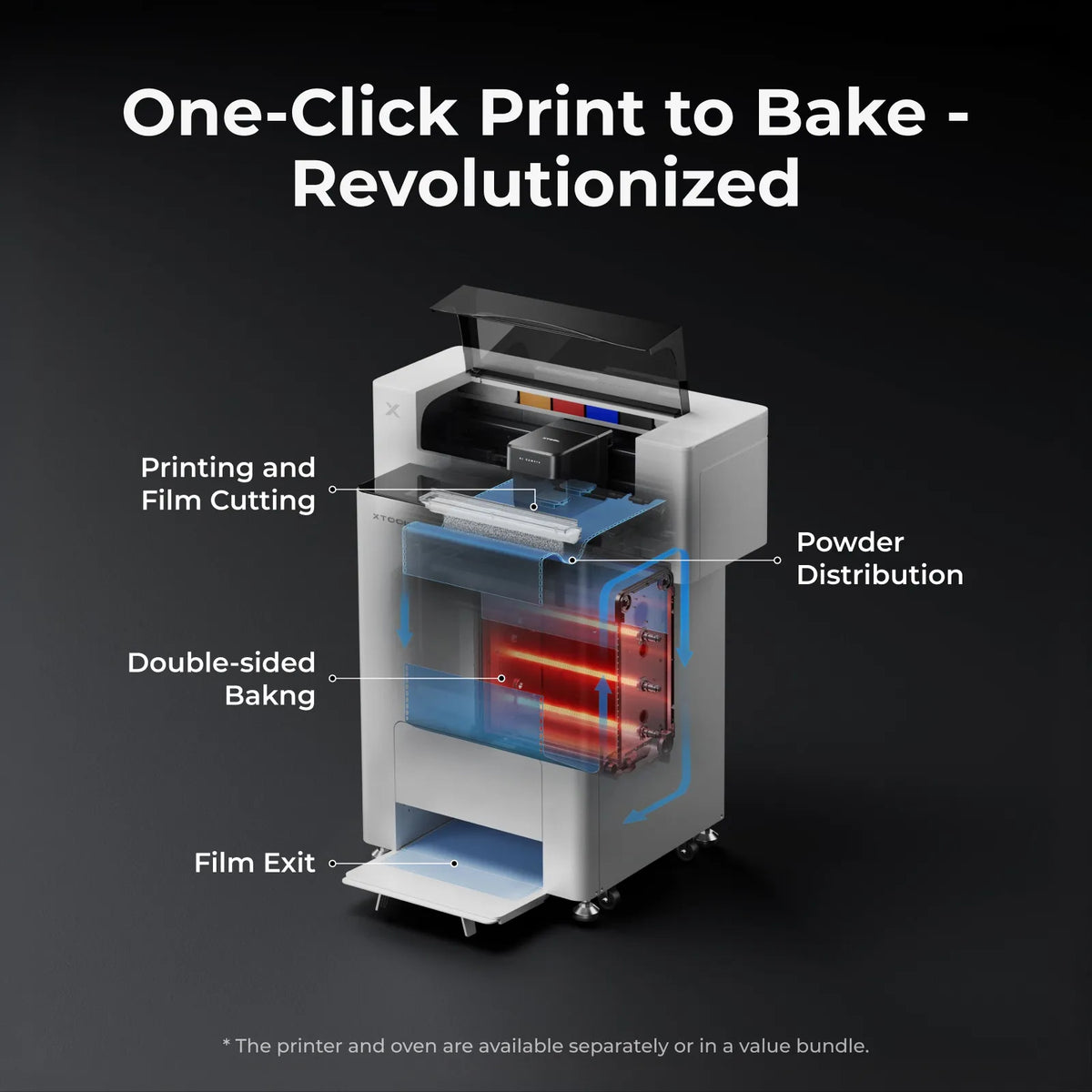

One-Click Workflow: Fully auto print, powder apply & shake to bake (xTool shaker oven only).
-

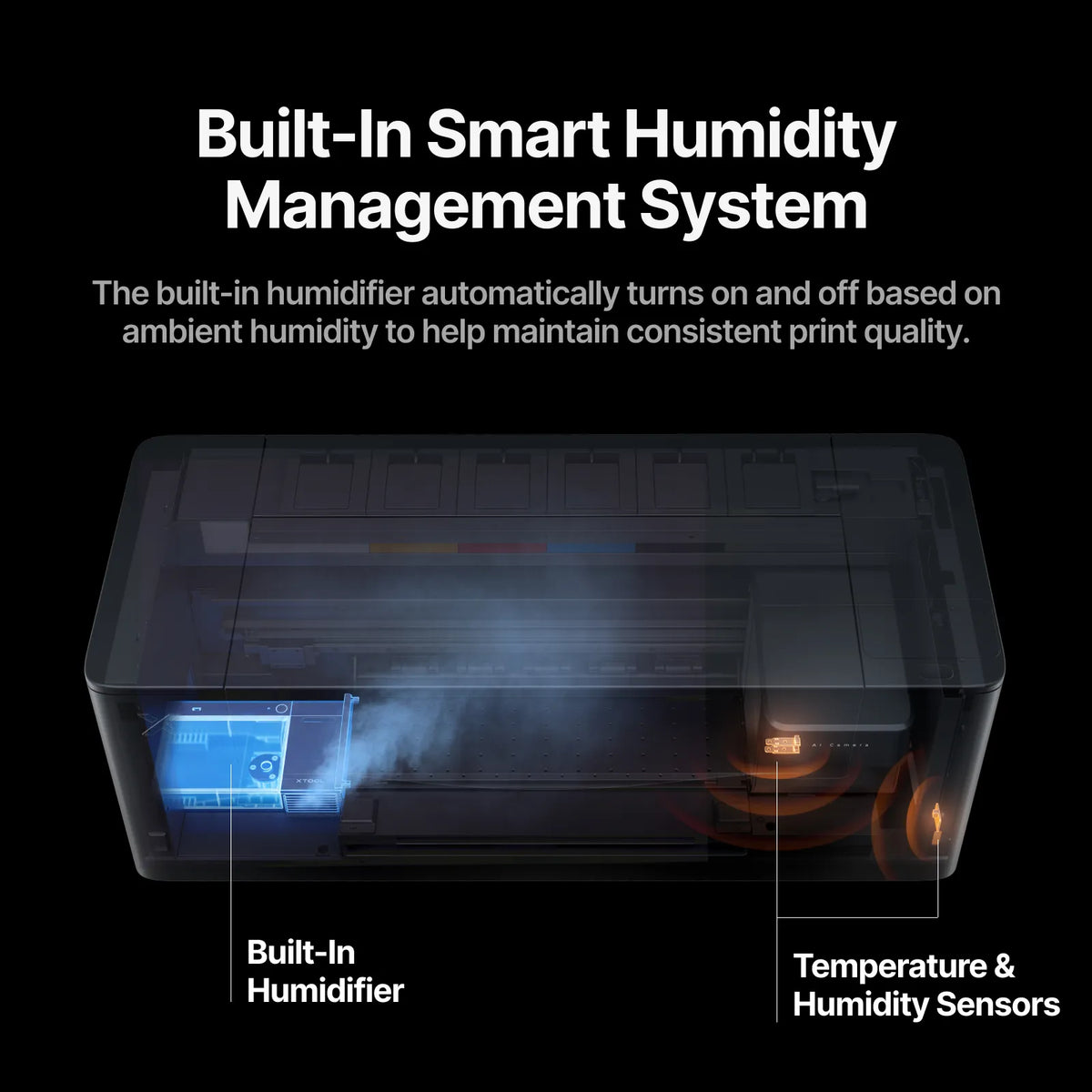

Smart Humidity Care: Built-in ultrasonic humidifier helps keep printing smooth, even during busy seasons.
-

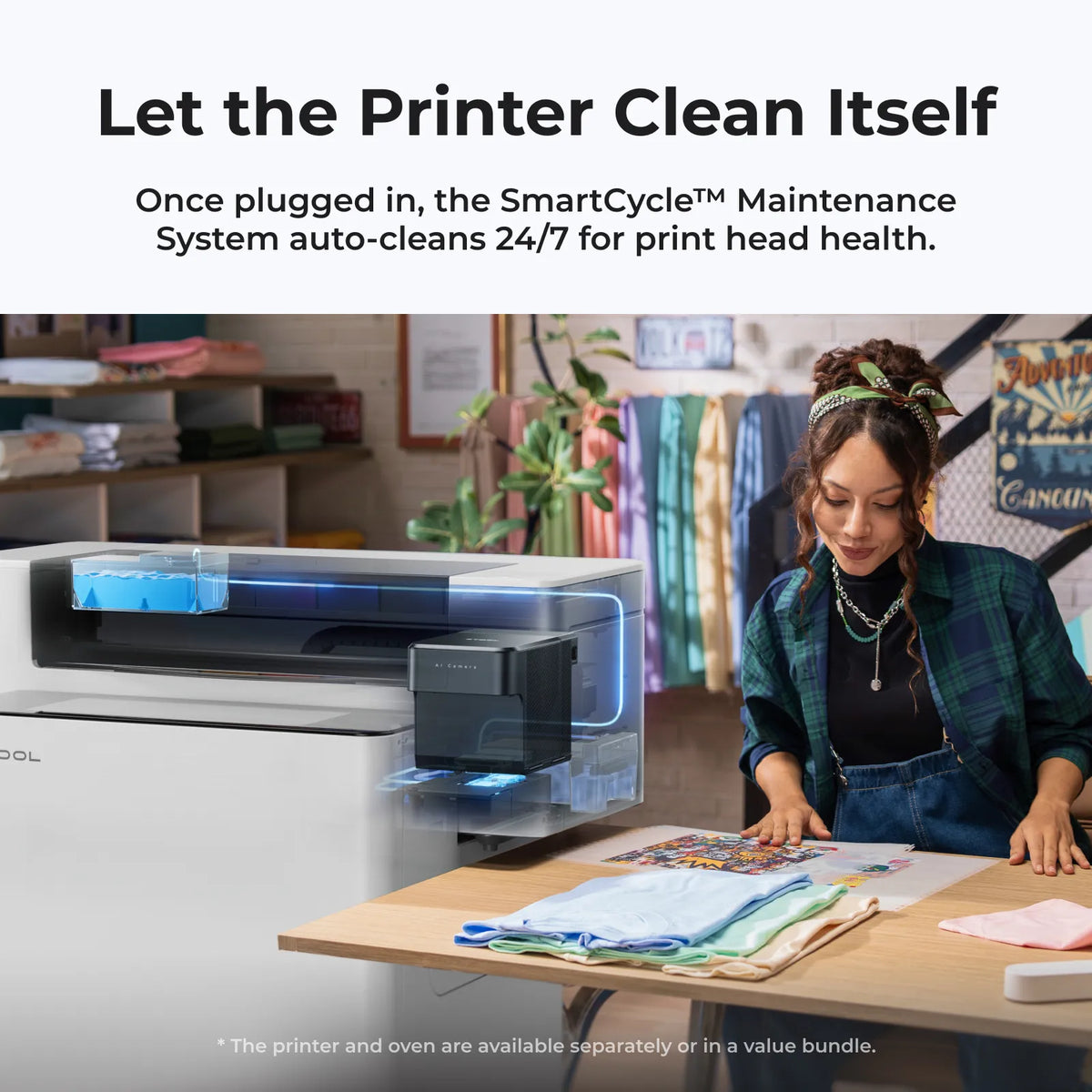

24/7 Smart Care: Auto cleaning, wet capping, white ink circulation, plus app-based remote cleaning, monitoring, and alerts.
-
Commercial Productivity: Epson I1600 dual printheads, G7 color accuracy, 50 sq ft/hr speed, 14" print width.
Built for higher production demands, the xTool Apparel Printer Plus combines commercial productivity with an all-in-one, beginner-friendly DTF printing workflow. Featuring dual Epson I1600 printheads and speeds up to 50 sq ft/hr, it seamlessly automates powder application, shaking, and baking to deliver ready-to-press transfers in just minutes.
Compared to traditional screen printing, the Apparel Printer Plus handles complex, full-color designs on any fabric with ease and superior clarity. Its 24/7 Smart Care system—complete with built-in ultrasonic humidification and automated white ink maintenance—ensures smooth, reliable printing and virtually eliminates manual cleanup.

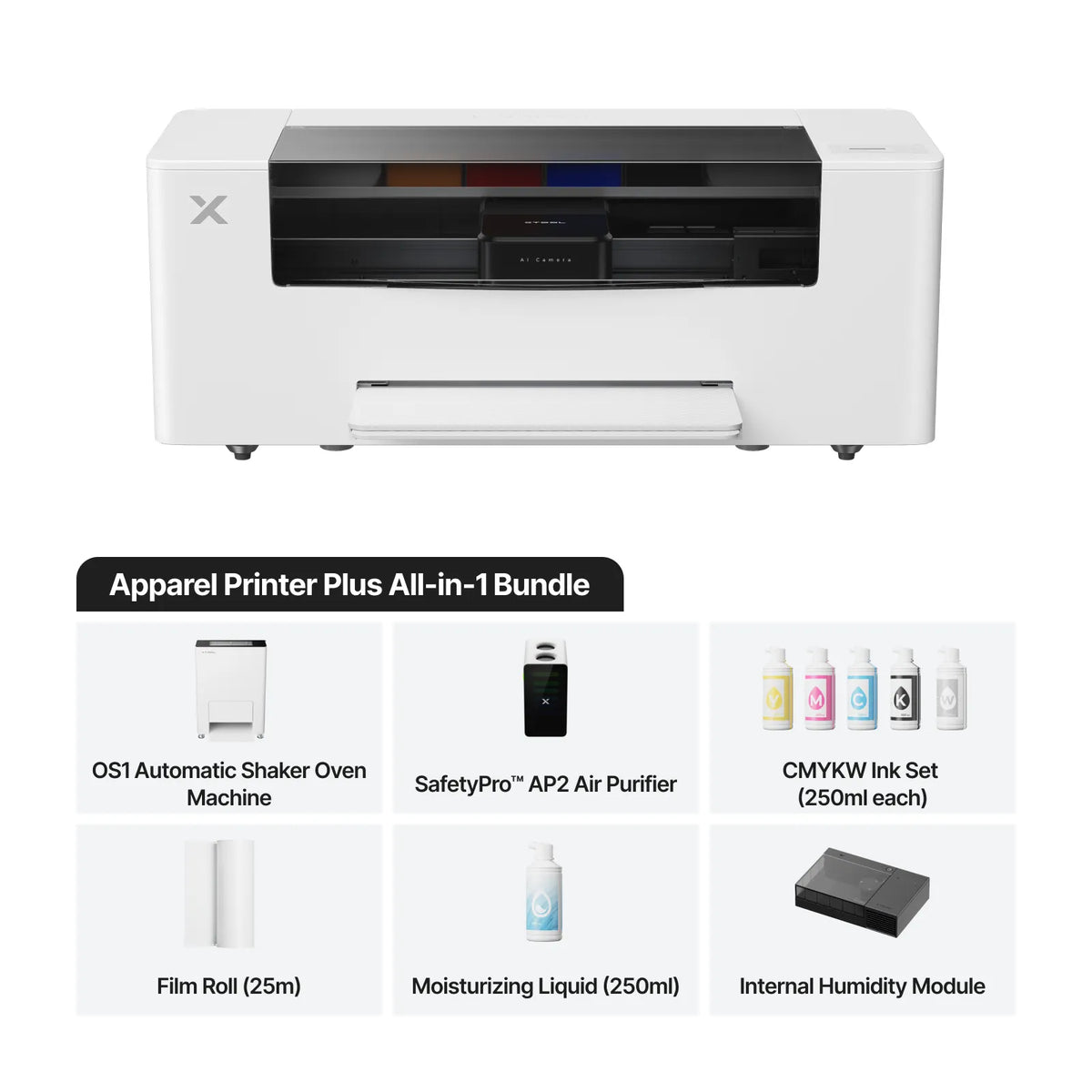

What's Included:
Standalone:
All-in-one:

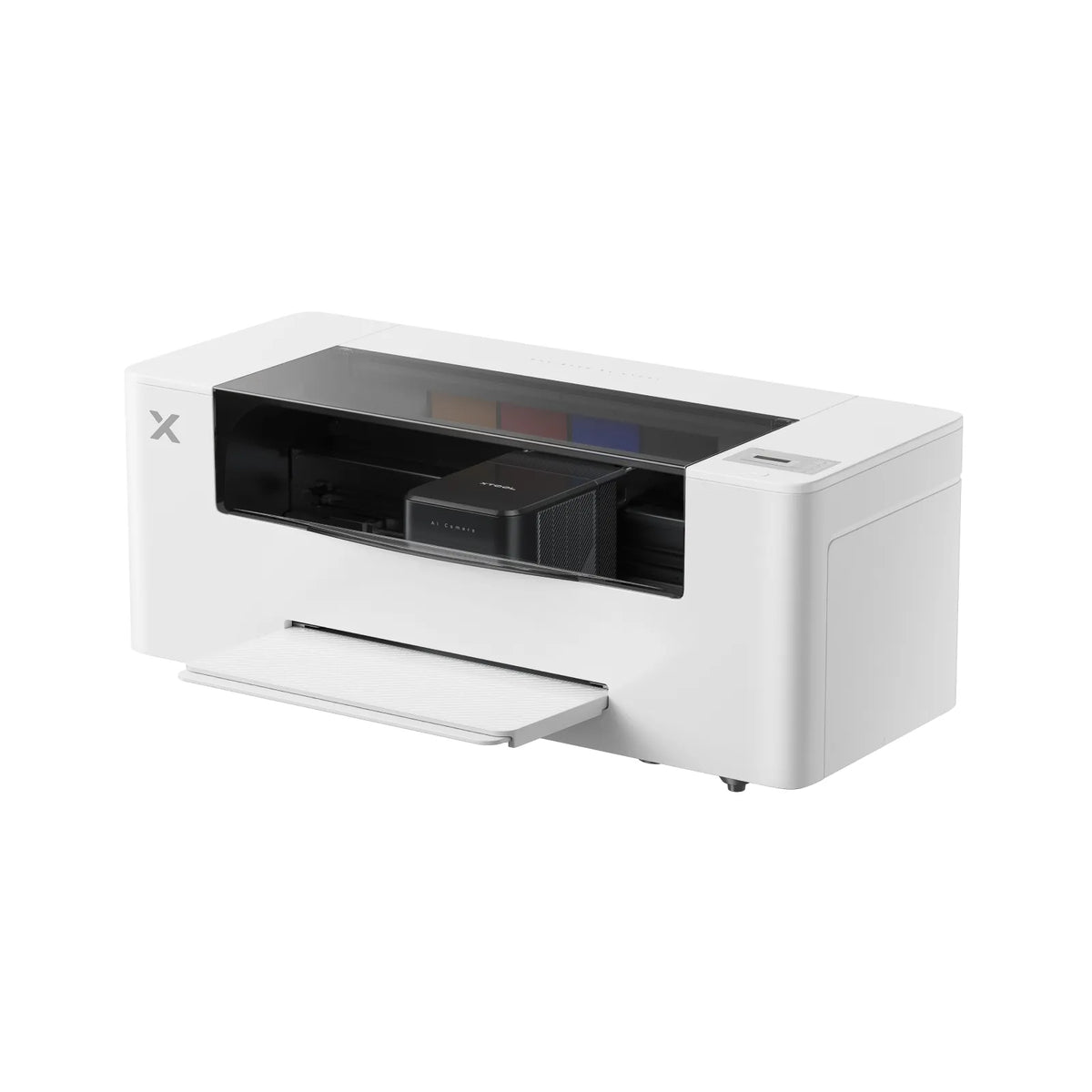

- xTool Apparel Printer Plus
- xTool OS1 Automatic Shaker Oven Machine x1
- SafetyPro AP2 Air Purifier x1
- DTF Ink(CMYKW 500ml) x1
- DTF Printing Film(25ml) x1
- Powder(1kg) x1
- Moisturizing Liquid(500ml) x1
- Cleaning Kit x1
Technical Specifications:
Product Dimensions
- Printer Solo Size: 35.63" x 14.37" x 14.03" (905 mm x 365 mm x 356.5 mm)
- Printer Solo Weight: 61.73 lbs (34 kg)
- Print Width: 14" (356 mm)
- Maximum Print Area: 14" × 23.5" (356 × 600 mm)
Printing Capabilities
- Materials Application: All fabrics, including cotton, polyester, denim, canvas, spandex, nylon, and more
- Print Head: Epson I1600 Dual Print Head
- Printing Resolution: 720 x 1800 DPI
- Minimum Ink Drop Size: 3.8 pL
- Printing Speed: Up to 50 sq ft/hr (720×1200 DPI)
- Printing Mode: Single Sheet-Fed
- Printing Color: CMYK+WWWW
Software and Maintenance

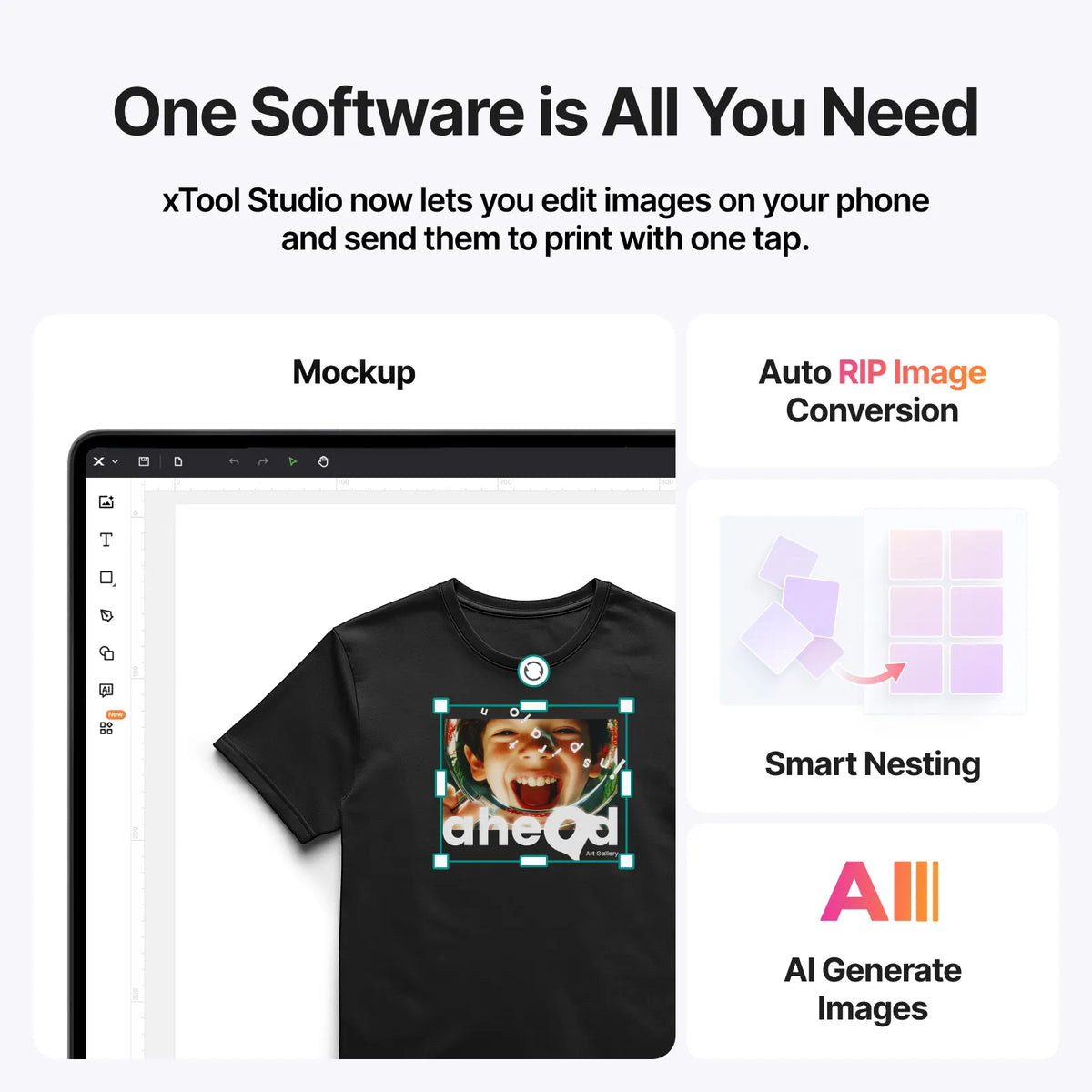

- Supported Software: xTool Creative Space (Includes AI-Powered Design Generator, RIP, Auto Nesting, Printing Layout, Machine Control, and more)
- Software Compatibility: Android, iOS, macOS & Windows Supported
- Calibration: AI-Powered Auto Calibration
- Maintenance: Auto Printheads Cleaning, Auto Humidification, Auto Ink Stir and Circulation / WIMS (White Ink Management System), Auto Wet Capping, and App Remote Monitoring.
General
- Printer Voltage: AC 100V-120V / 220V-240V
- Printer Frequency: 50 Hz / 60 Hz
- Printer Power Consumption: 350W
- Printer Sleep Mode Power Consumption: 23.5W, approximately 0.5 kWh per day
- Operating Temperature: 59-89°F / 15-30°C (68-89°F / 20-30°C Recommended)
- Operating Humidity: 30%-80% RH (50%-80% RH Recommended)
