PLEASE NOTE: This product is an add-on for the HUSKYLENS 2. Please ensure that you have access, or will have access, to the HUSKYLENS 2 at the time of your purchase.

Highlights:

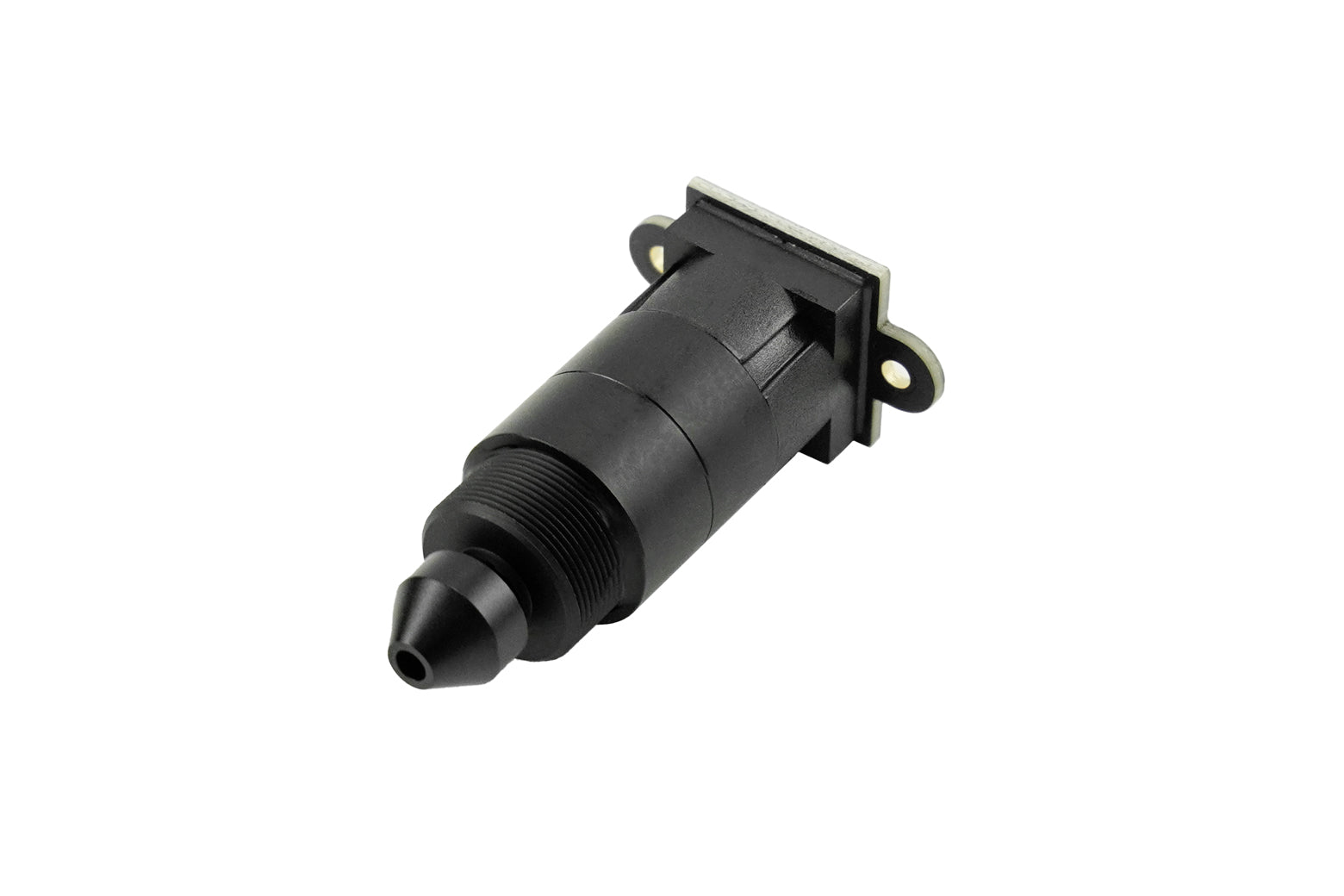

HUSKYLENS 2 Microscope Lens Module

The HUSKYLENS 2 Microscope Lens Module is a dedicated optical accessory engineered to unlock the microscopic potential of the HUSKYLENS 2 AI vision sensor. By integrating a specialized 6mm focal length lens, this 30x magnification attachment transforms the HUSKYLENS 2 into a smart digital microscope. It delivers high-resolution 2MP (GC2093) imaging and achieves a minimum resolvable line width of approximately 3 μm, enabling not just the observation but the identification of microscopic targets. This AI-compatible lens opens up new applications in automated biology, microscopic quality inspection, and interdisciplinary technology education.

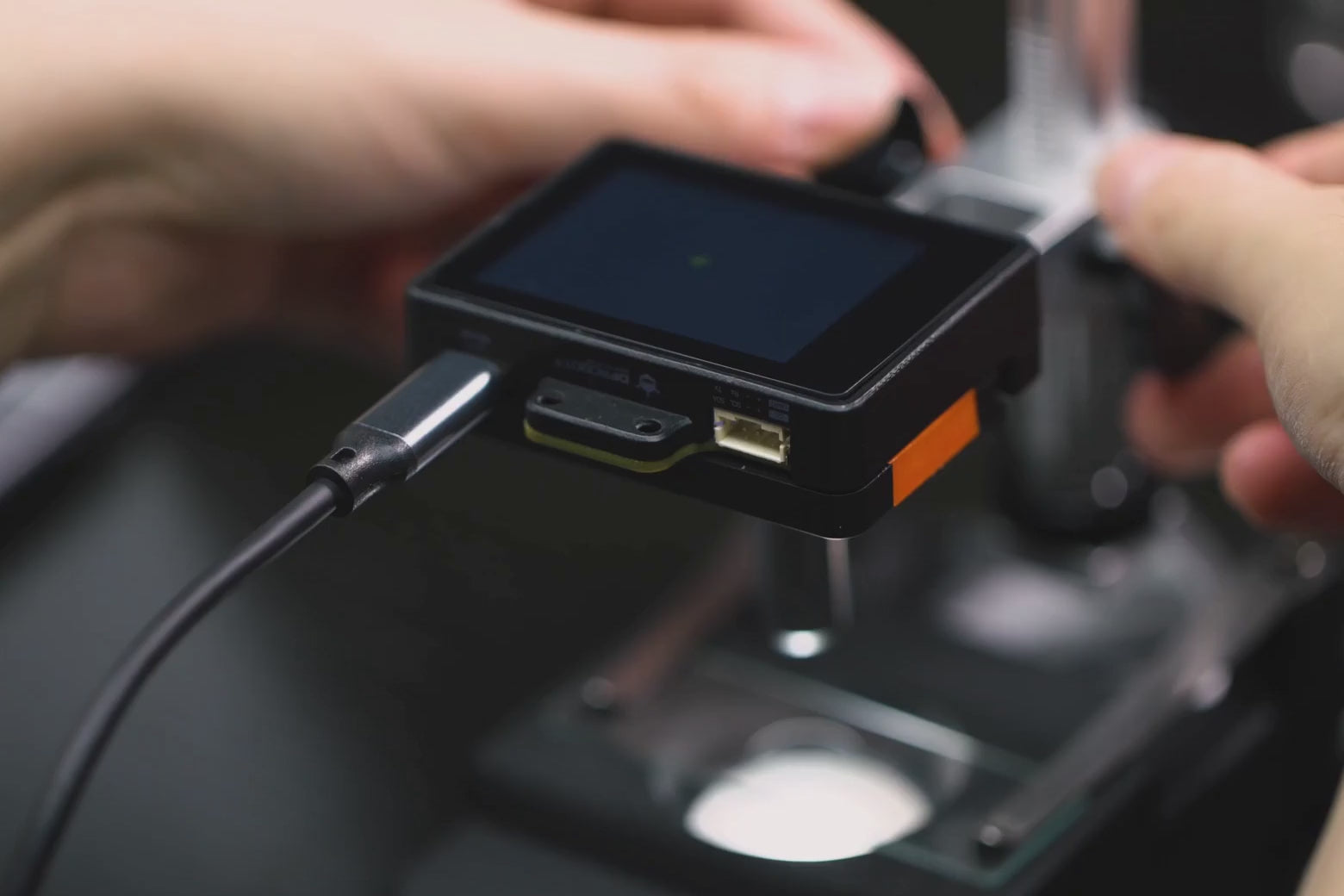

Enable AI-Powered Microscopic Identification

This microscope lens accessory moves beyond simple observation. It empowers the HUSKYLENS 2 to apply its machine vision algorithms—such as object recognition, tracking, and classification—to the microscopic world. Instead of just viewing a cell, the system can be trained to identify and react to specific types of cells, micro-organisms, or material structures, automating complex observation tasks.

High Magnification and Resolution Imaging

This high-resolution lens provides approximately 30x magnification, making previously invisible details clear and distinct. It features a 2-megapixel GC2093 sensor and achieves a high system spatial resolution of 161 lp/mm. This precision allows it to resolve line widths down to approximately 3 μm (USAF 1951, Group 7, Element 3), which is essential for distinguishing fine details in biological samples, electronics, or material surfaces.

Seamless Integration for HUSKYLENS 2

As an official accessory, the lens is engineered for a precise fit and optimal performance with the HUSKYLENS 2. This all-in-one, integrated design simplifies setup, ensuring that makers and educators can quickly upgrade their existing sensors into a powerful, compact AI microscope without complex assembly or third-party calibration.

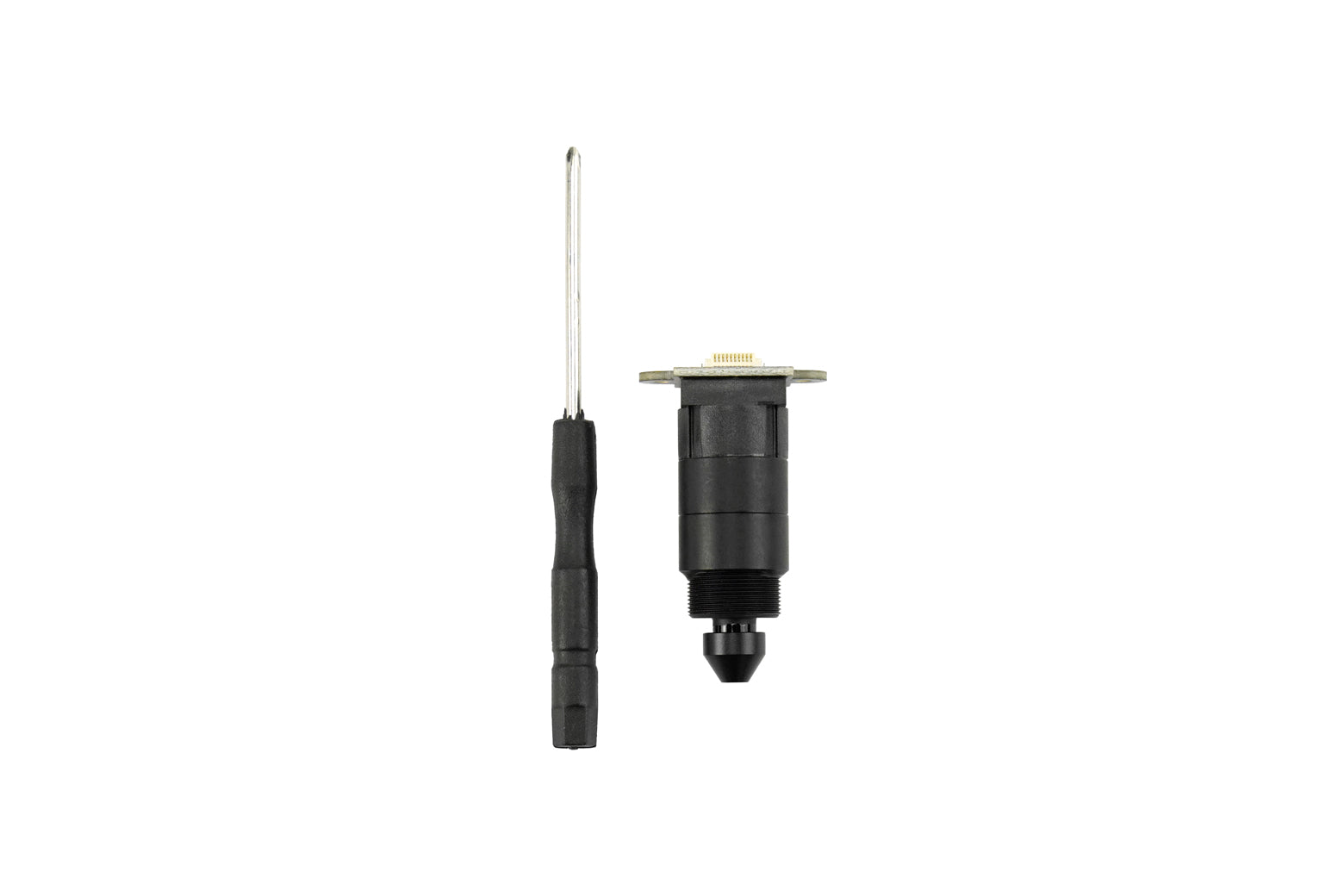

What's Included:

• HUSKYLENS 2 Microscope Lens Module x1
• Small Phillips Screwdriver x1

Technology Requirements/Specifications:

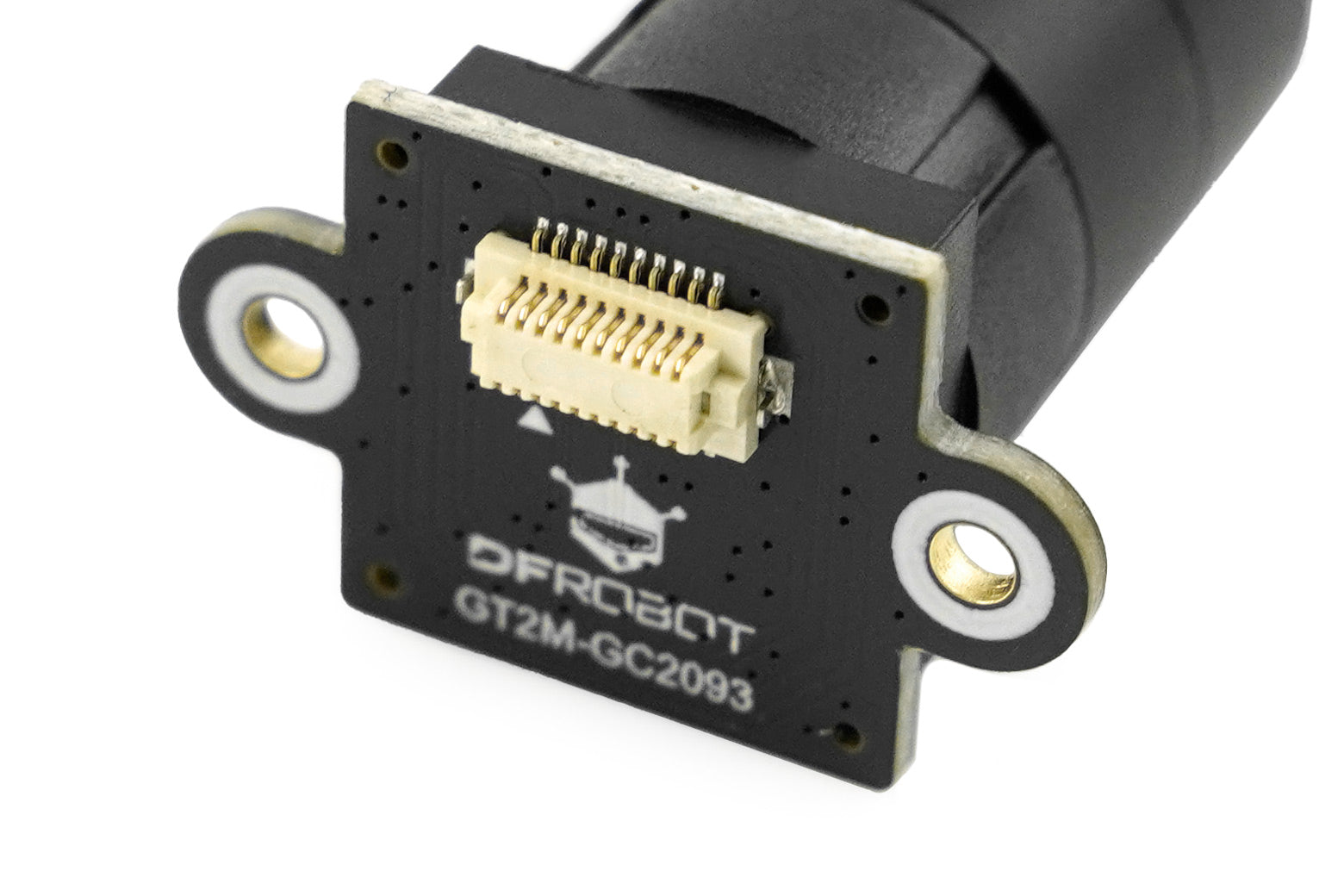

• Image Sensor: GC2093, 2 Million Pixels
• Focal Length: 6mm
• Field of View (FOV): 6°
• Magnification: Approx. 30x (A 1mm gap on a caliper is displayed as 30mm on the screen)
• System Spatial Resolution: Approx. 161 lp/mm
• Minimum Resolvable Line Width: Approx. 3 μm (Based on the USAF 1951 resolution test chart, the line boundaries of Group 7, Element 3 are clearly distinguishable by the naked eye)
