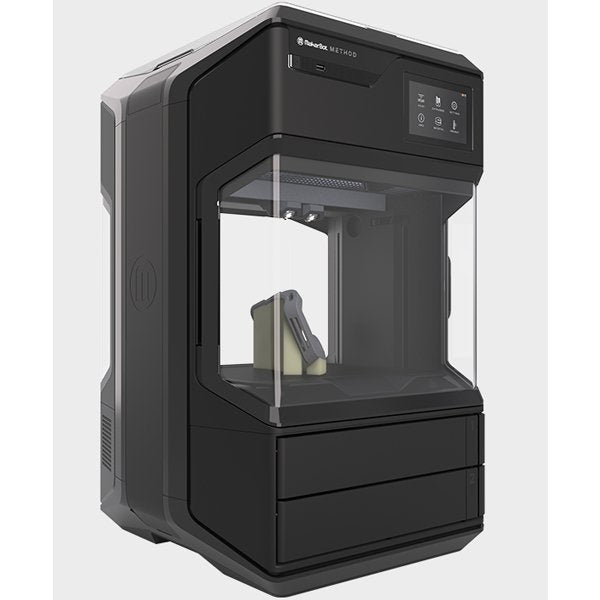

MakerBot Method introduces an entirely new category of 3D Printing defined by INDUSTRIAL RELIABILITY + PRECISION, FASTEST CAD-TO-PART, and MAXIMUM PERFORMANCE + MINIMAL INVESTMENT. We call it Performance 3D Printing.
INDUSTRIAL RELIABILITY + PRECISION: Consistent print results that match design dimensions.
- Circulating Heated Chamber
- Ultra-Rigid Metal Frame
- Dry-Sealed Material Bays
- Dual Performance Extruders (with tech borrowed from SSYS patents)
- Precision PVA Dissolvable Supports
FASTEST CAD TO PART: Up to 2x faster than desktop 3D printers*
- Save days or weeks over conventional outsourcing- Additive Manufacturing, CNC, etc.
- Enables seamless printing without tinkering.
MAXIMUM PERFORMANCE + MINIMAL INVESTMENT: About the first-year cost of ownership of an entry-level industrial 3D printer with no technician required.
- Accelerate product development
- Ensure parts are how you want them before sending out for 3rd party production
- Provide designers direct access to 3D printing so they reach decisions faster
- Easy deployment and operation at the enterprise level
- Low Total Cost of Ownership (TCO)
- Reclaim development time with MakerBot no-hassle 3D printing platform
*Based on internal print speed testing compared to popular desktop 3D printers when using the same layer height and infill density settings. Dependent upon object geometry.
Compatible Software
- SolidWorks, Autodesk, CATIA, Rhino, TinkerCAD
Warranty
- 1 Year (includes 6 months of standard warranty and 6 months of free extended warranty $950 value)
- Provides replacement of parts that don't conform to MakerBot published specifications
- Response time = 3 business days
What ships in the box?
- 1 MakerBot Method Performance 3D Printer
- 1 Tough spool 1.65lb
- 1 PVA spool 1.0lb
- 1 Spring Steel Build Plate (with 1 sheet of Build Tak)
- 1 Nozzle Cleaning Brush
Technical Specifications
PRINTING
- Print Technology: Fused Deposition Modeling (FDM)
- Dimension Accuracy: ‚± 0.2mm or ‚± 0.002 mm per mm of travel (whichever is greater)*
- Build Speed: Up to 2x times faster than desktop 3D printers**; Max Filament Flow Rate: ~50mm3; per sec; Print Head Travel Speed: Up to 500 mm/sec
- Layer Resolution:‚ Maximum Capability: 20 - 400 microns
- Maximum Build Volume: 7.5 (6.0 with water soluble supports) x 7.5 x 7.75 inches
HARDWARE
- Print Heads: 2
- Frame Construction: Aluminum Die Cast base, Extruded Aluminum Uprights, Steel Weldment Gantry Frame
- Number of Chamber Heaters: 2
- Chamber Heaters Cartridge Size:‚ 1/4" 60W Heaters
- Print Sensors: 21
- Nozzle Diameter: 0.4 mm
- Nozzle Material: 17-4 PH Hardened Steel
- Max Extruder Drive Torque: 200 Newtons through 19:1 gear ratio (3x more pull force than desktop standard)
- Extruder Thermal Core Length: 51.5 mm (3x longer than desktop standard)
- Display: 5'' full-color capacitive touch screen
- Build Plate: Spring Steel
- Build Surface: Reusable, flexible grip surface
- Camera Resolution: 640 x 480 pixels
- Ambient Operating Temperature: 15 - 26 ‚ºC, 10 - 90% RH non condensing
- Storage Temperature: 0-38C
SIZE & WEIGHT
- Product Dimensions: 413 mm x 437mm x 649 mm / 16.3D x 17.2 W x 25.6H
- Product Weight: 65 lbs
- Shipping Box: 76.5 H x 50.0 W x 55.5 D centimeters [30.1 H x 19.7 W x 21.9 D inches]
- Shipping Weight: 81.7 lbs
MATERIALS
- Supported Materials:‚ MakerBot Precision Materials: PLA, Tough, PVA MakerBot Specialty Materials: PETG, more to come
- Dry-Sealed Filament Protection: 30 days
- Filament Diameter: 1.75 mm (0.0069 in)
- Spool Type: Smart Spools with RFID tag
- Spool Size: 750g (1.65 lbs) model, 450 (1.00 lbs)
- System: Open Filament System (Filament Aux Port)
SAFETY & COMPLIANCE
- Safety: Full Enclosed, Door Safety Switch, Lid Safety Switch
- Compliance: FCC, EMC, Low Voltage Directive 60950-1, 62368
ELECTRICAL
- Power Requirements: 100-240 V, 4A. 50-60 Hz, 400 W max
- Connectivity: USB Drive, USB, Ethernet, Wifi
SOFTWARE
- Software Bundle: MakerBot Print, MakerBot Mobile
- Supported File Types (Windows only):‚ MakerBot (.makerbot), STL (.stl), SolidWorks (.sldprt, .sldasm), InventorOBJ (.ipt, .iam), IGES (.iges, .igs), STEP AP203/214 (.step, .stp), CATIA (.CATPart, .CATProduct), Wavefront Object (.obj), Unigraphics/NX (.prt), Solid Edge (.par, .asm), ProE/Creo (.prt, .prt., .asm, .asm.), VRML (.wrl), Parasolid (.x_t, .x_b)
- CAD Plugins: SolidWorks, Autodesk Fusion 360
- Operating Systems: Windows (7,10); Mac OS X (10.12+)
SERVICE & SUPPORT
- Warranty: 1 Year (includes 6 months of standard warranty and 6 months of free extended warranty ¢‚¬œ $950 value)
