Highlights:

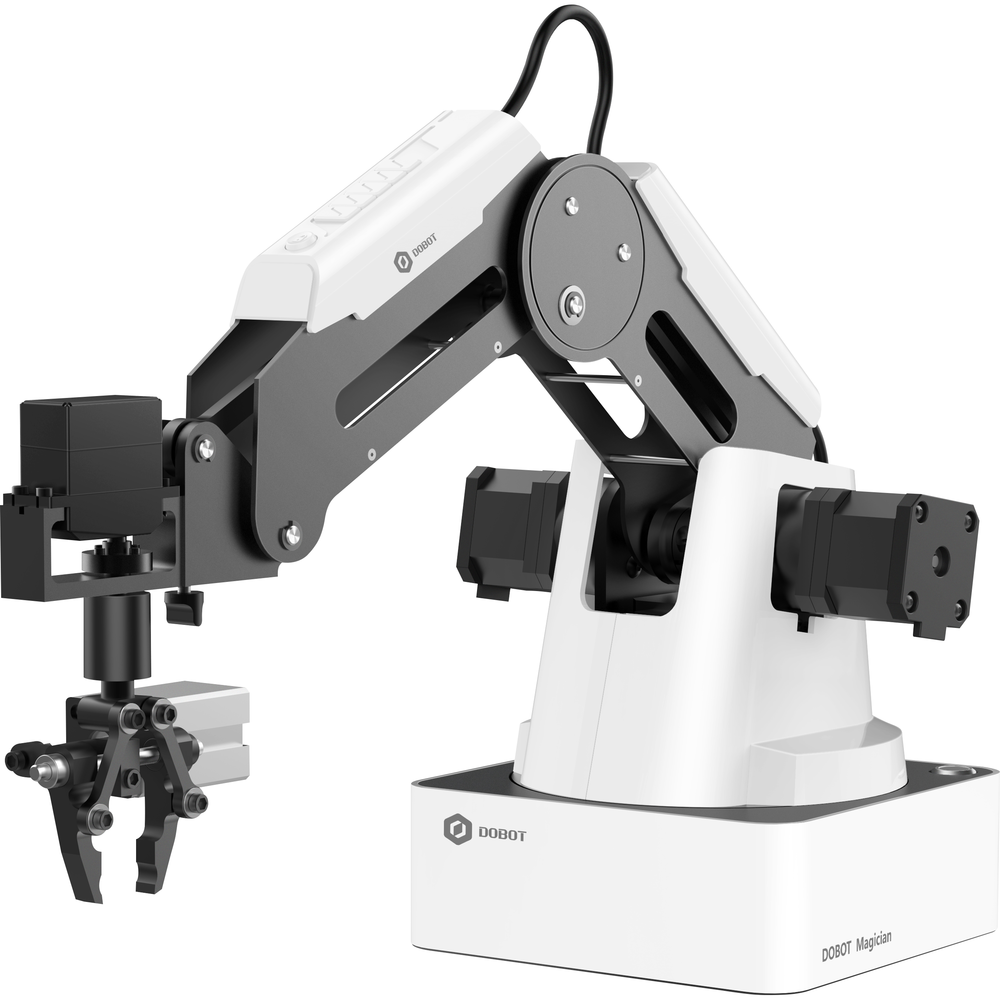

The Magician is the world's first desktop grade 4-axis robot. It can perform a wide range of tasks such as 3D printing, laser graving, calligraphy and drawing. 13 interface ports are available to support secondary development, lab projects and robotics curricula.
Studies such as robotic systems, the DH convention, control of robot movement and robot programming can be taught to different levels of students. A variety of application scenarios can be developed through the use of programming software and hardware accessories.
Features:
Operable by One Person
The Magician is designed for students and consumers in mind. It is extremely portable and capable of various automation tasks. Users can interact with the Magician using quick access command buttons or wirelessly with portable computing devices.
Teach Robot Physically
The Magician is capable of drag-to-teach. Simply by moving the robotic arm through desired paths to program it. It’s that simple.
Â

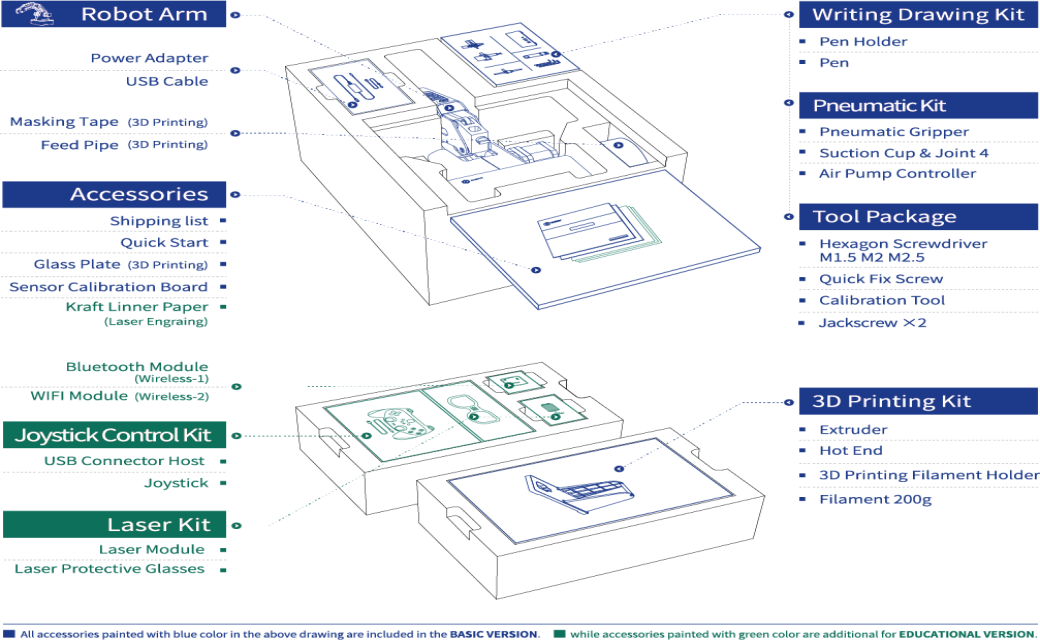

What's Included:
An all-in-one and user-friendly Robotic Arm includes:
Â
Technical Specifications:
| Number of Axis | 4 |
| Payload | 500 g |
| Max. Reach | 320 mm |
| Repeatability | ±0.2 mm |
| Communication | USB / Wi-Fi* / Bluetooth* |
| Power Supply | 100V - 240V, 50/60 HZ |
| Power In | 12V / 6.5A DC |
| Consumption | 78W Max |
| Working Temperature | -10° - 60° C |
Â
| Applications | |
| Software | DobotLab, DobotStudio, Repetier Host, GrblController3.6, DobotBlockly (Visual Programing editor) |
| SDK ( Software Develop Kit ) | Communication Protocol, Dobot Program Library |
| Extensible I/O Interfaces | 1. I/O × 10 (Configurable as Analog Input or PWM Output) |
| 2. Controllable 12V Power output × 4 | |
| 3. Communication Interface (UART, Reset, Stop, 12V, 5V and two I/O included) | |
| 4. Stepper × 2 | |
