Highlights:

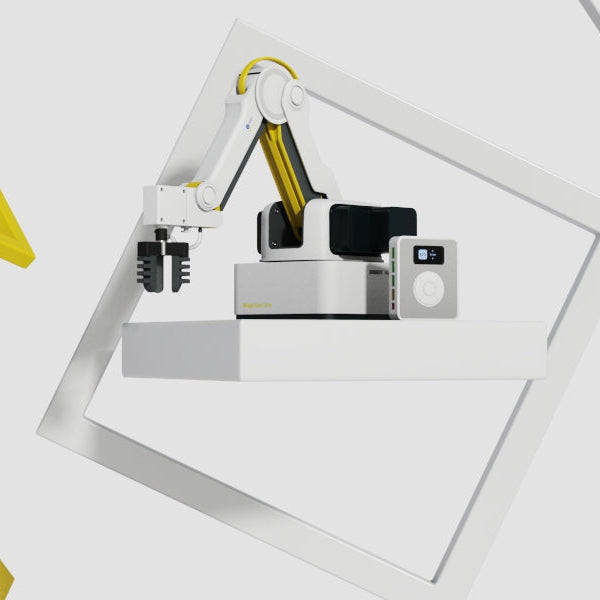

The Magician Lite is a multi-functional lightweight intelligent robotic arm made for K12 education. Students can interact with the Magician Lite using software, hardware and expansion interfaces to maximize their creative freedom. Through the process of building and playing, they can learn how AI and robots work. They will also be introduced to the world of robotics and how robots can be applied in the real world.
User Friendly.
Great Performance.
The Magician Lite has a 0.2 mm repeatability, a maximum payload of 0.25 kg and a maximum reach of 340 mm, and supports a wide variety of end effectors, such as a soft gripper, suction cup and pen grasper. Equipped with collision detection, it ensures the safety of young learners and operators.
Higly Expandable with Magic Box
The Magic Box is the external control unit for the Magician Lite that handles programming. It has 12 communication interfaces, supports Bluetooth and is compatible with a range of accessories.
Graphical Programming.
The DobotLab software platform offers a variety of methods to program robots. Intuitive graphical user interface allows for block programming to easily enable AI functionalities on the Magician Lite.
Robotics Curriculum.
Complete robotics courses of different leves are available for students to learn chapter by chapter. Introduce programming and robotic skills to young learners to help them succeed in the future.
Â
Technical Specifications:
| DOBOT Magician Lite | |
| Degree of Freedom | 4 |
| Maximum Load | 250 g |
| Max Reach | 340 mm |
| Repeatability | ±0.2 mm |
| Voltage | 100V - 240V AC,50/60 Hz |
| Power Input | 12V ～ 5A DC |
| Working Environment | -5° ～ 45° C |
| Power | 60W Max |
| Communication | USB Virtual Serial Port / Serial Port |
| Software | DobotStudio/DobotLab |
| Weight | 2.4 KG |
| Rear Arm / Forearm | 150 mm |
| Base Size | 146 mm x 146 mm |
| Magic Box | |
| MCU | ARM 32-bit Cortex-M4 |
| Main Frequency | 168 MHz |
| Voltage | 100V - 240V AC,50/60 Hz |
| Power Input | 12V ～ 5A DC |
| Working Environment | -5° ～ 45° C |
| Power | 60W Max |
| Communication | USB Virtual Serial Port/Serial Port/Bluetooth |
| Programming Language | MicroPython |
| Software | DobotStudio/DobotLab |
| Weight | 98 g |
| Size | 95 mm x 80 mm x 21.5 mm |
| Axis Motion | |
| Axis 1- Base | -135° to +135° |
| Axis 2- Rear Arm | -5° to +80° |
| Axis 3- Fore Arm | -10° to +85° |
| Axis 4- End Tools | -145° to +145° |
| J1-J3 Max speed | 300°/s |
| J4 Max speed | 200°/s |
