Highlights:

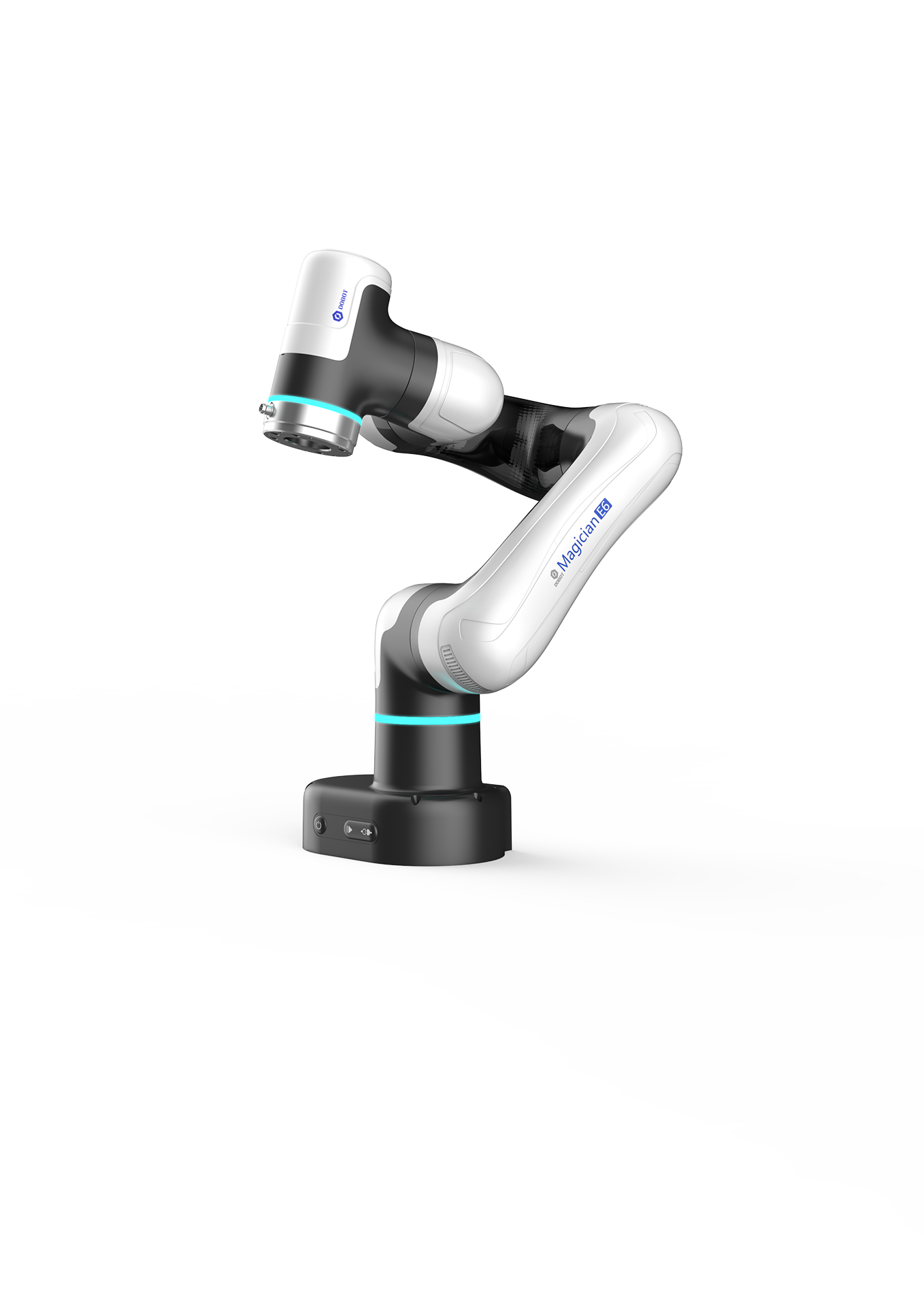

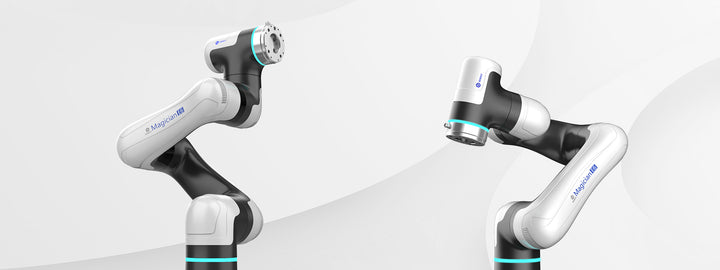

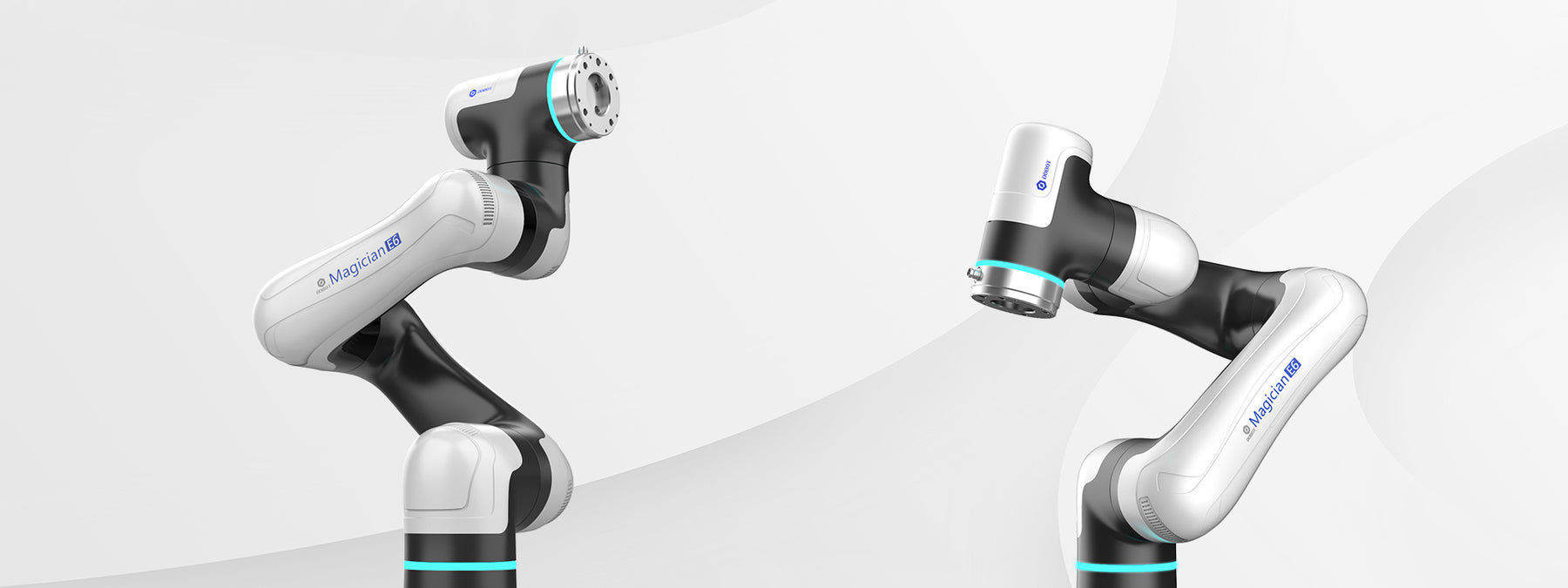

The DOBOT Magician E6 is a desktop grade 6-axis cobot designed for education and scientific research. It can accurately simulate various automation scenarios to provide immersive learning and research experiences. The Magician E6 has a number of interfaces for secondary development and course materials on robotics education, opening doors to a new way of education. It is the ideal platform to explore AI, smart manufacturing and other fields of study.
High Level Of Safety
Streamlined body design with collision detection for safer operation. Equipped with a light indicator ring for easy monitoring of Magician E6’s operating status.
Features:
Simple Deployment
Compact, lightweight and flexible, the Magician E6 can be effortlessly installed on a desk. Built-in control box simplifies external wiring for a plug-and-play experience.
Easy to Use
Proprietary trajectory replay technology allows no code drag-to-teach programming. Supports graphical programming. Anyone can easily learn and master Magician E6 operation.
Â
Technical Specifications:
| Weight | ≤7.2 kg | |
| Number of Axes | 6 | |
| Payload | 750 g | |
| Working Radius | 450 mm | |
| Repeatability | ±0.1 mm | |
| Maximum Speed of TCP | 0.5 m/s | |
| Range of Joints | J1 | ±360° |
| J2 | ±135° | |
| J3 | ±154° | |
| J4 | ±160° | |
| J5 | ±173° | |
| J6 | ±360° | |
| Maximum Joint Speed | 120°/s | |
| Power | 100V~240V AC, 50/60 Hz | |
| Rated Voltage | 48V DC, 5A | |
| Power Consumption | 130W | |
| I/O Interface Communication Interface | Ethernet | 2, for TCP/IP and Modbus TCP communication |
| I/O Interface | Arm Tip | DI x 2, DO x 2, 24V x 1, GND x 1 |
| Base | DI x 16, DO x 16, 24V x 4, GND x 4 | |
| I/O Power | 24V, Max 2A, Max 0.5A for each channel | |
| External Interface | EMO x 1, ABZ encoder x 1, Power connector x 1 | |
| Control Software | DobotStudio Pro | |
| IP Rating | IP20 | |
| Base Dimensions | 162 mm x 120 mm x 103 mm | |
| Working Environment | Temperature: 0° to 40° C. Humidity: 25 to 85% noncondensing | |
| Noise | 60dB(A) | |
| Installation Orientation | Desktop | |
| Materials | Aluminum alloy, ABS plastic | |
