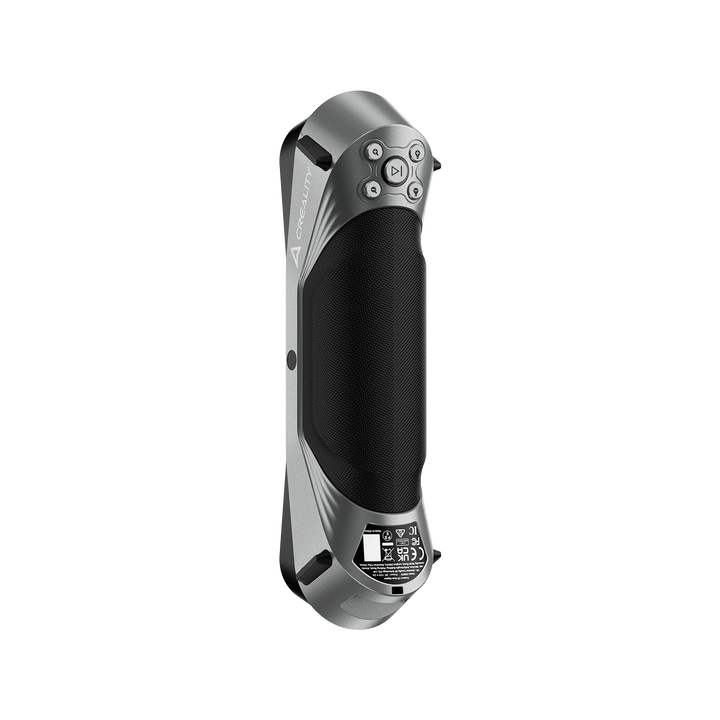

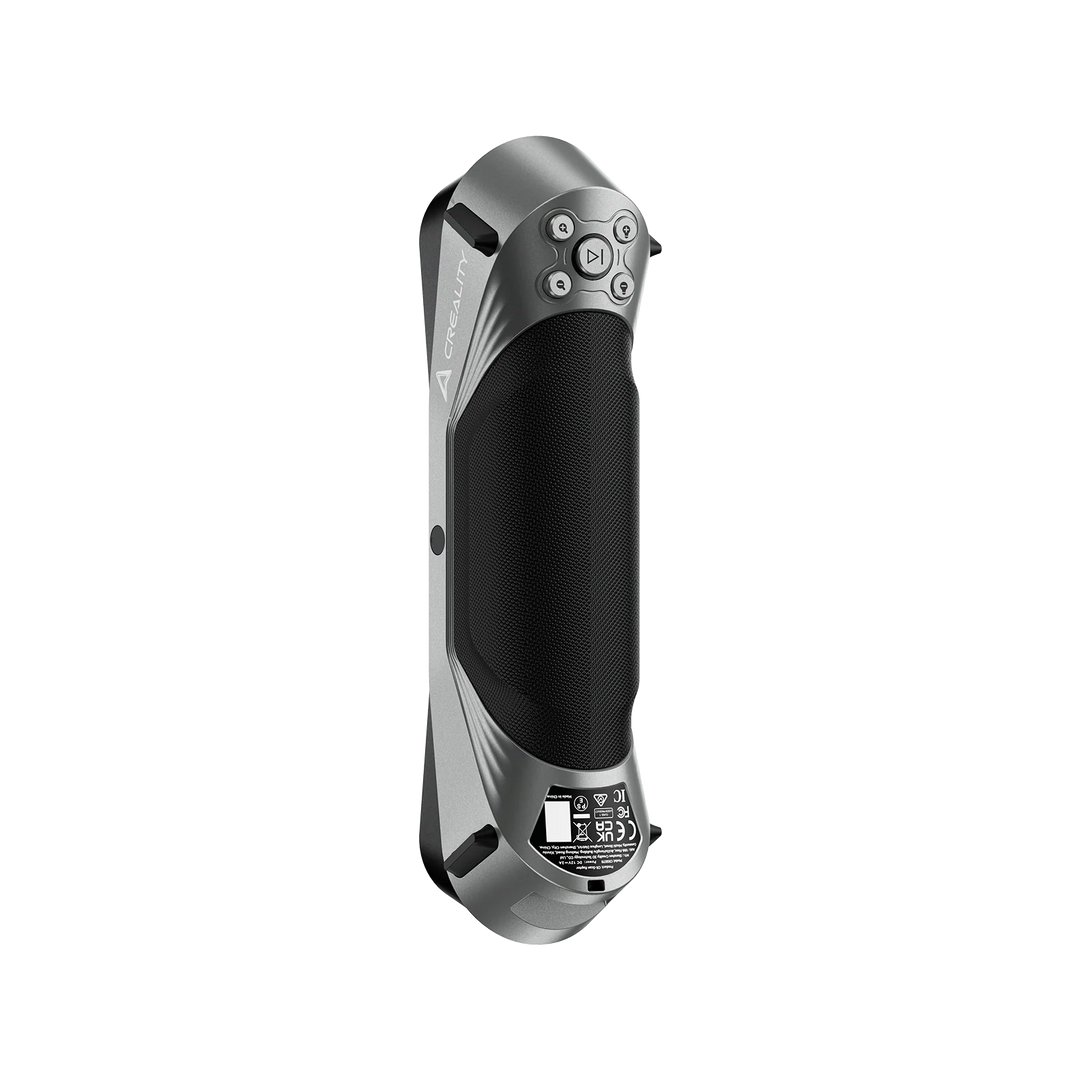

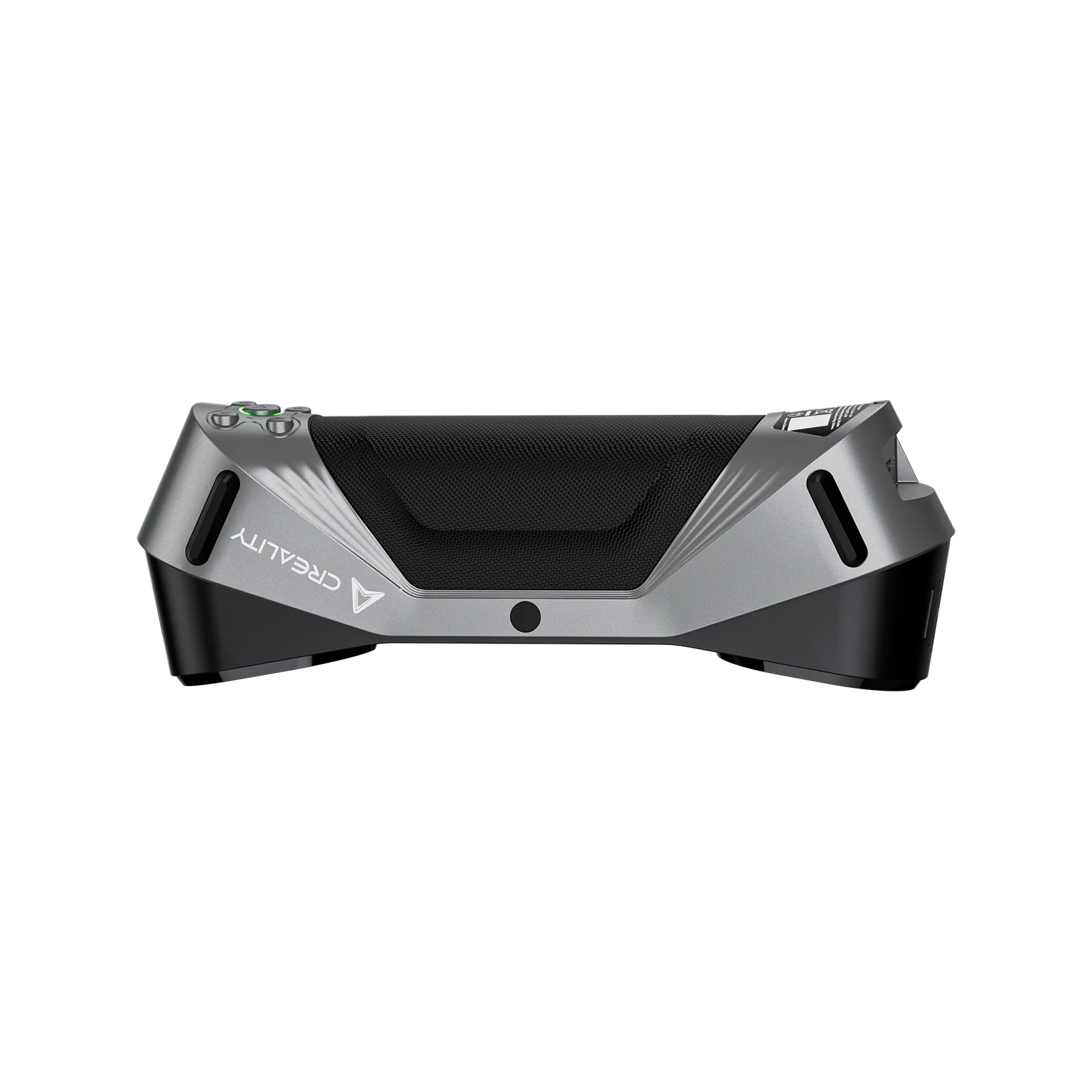

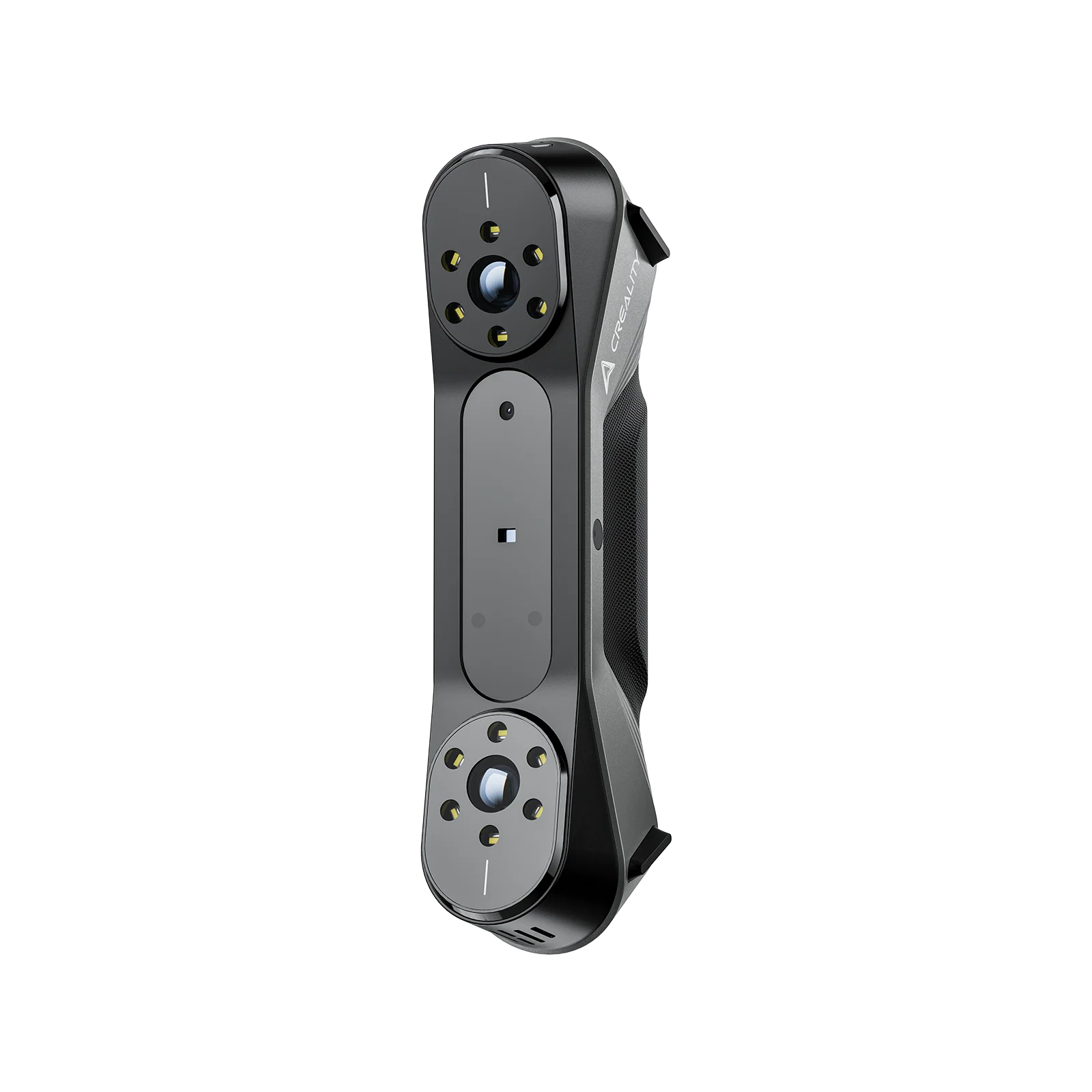

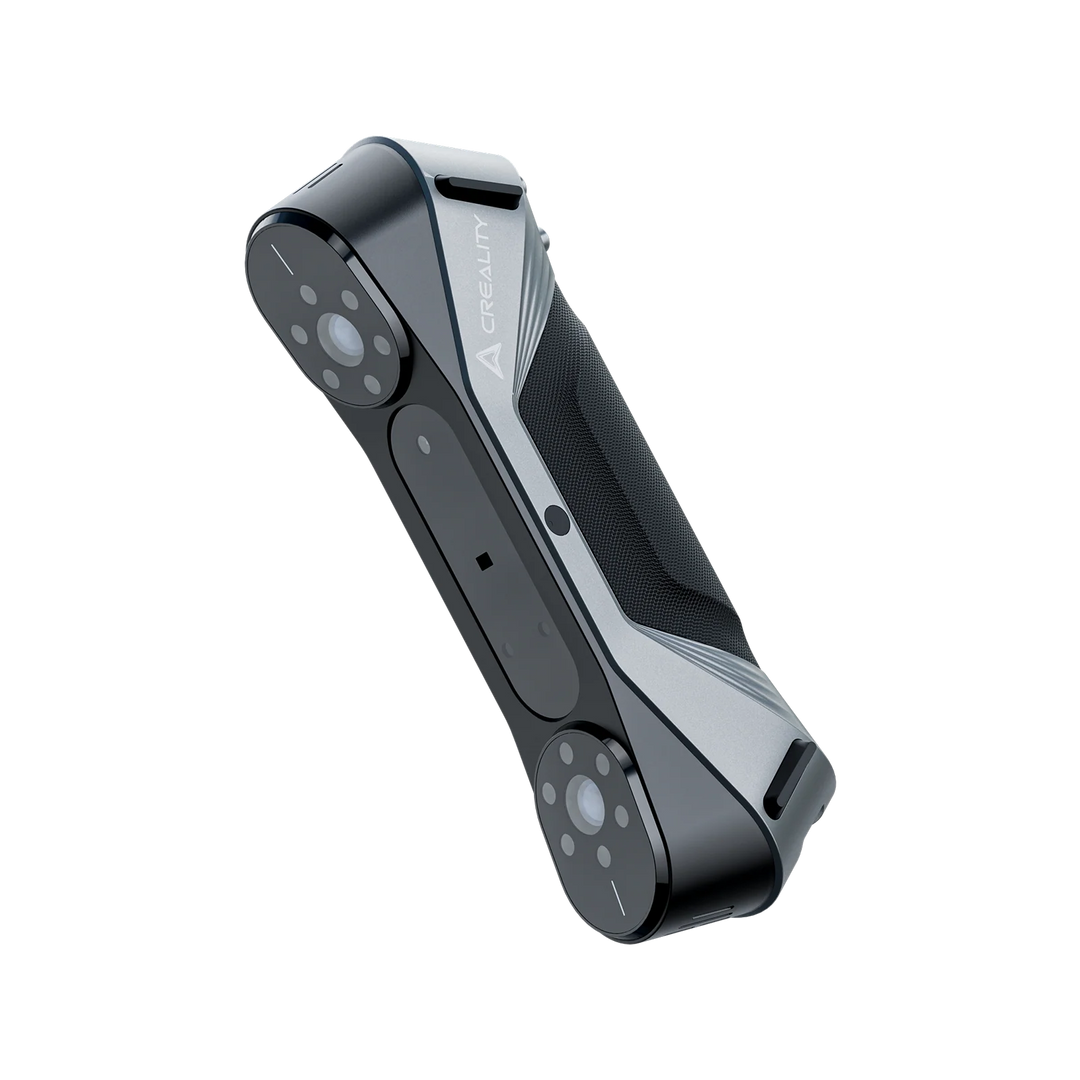

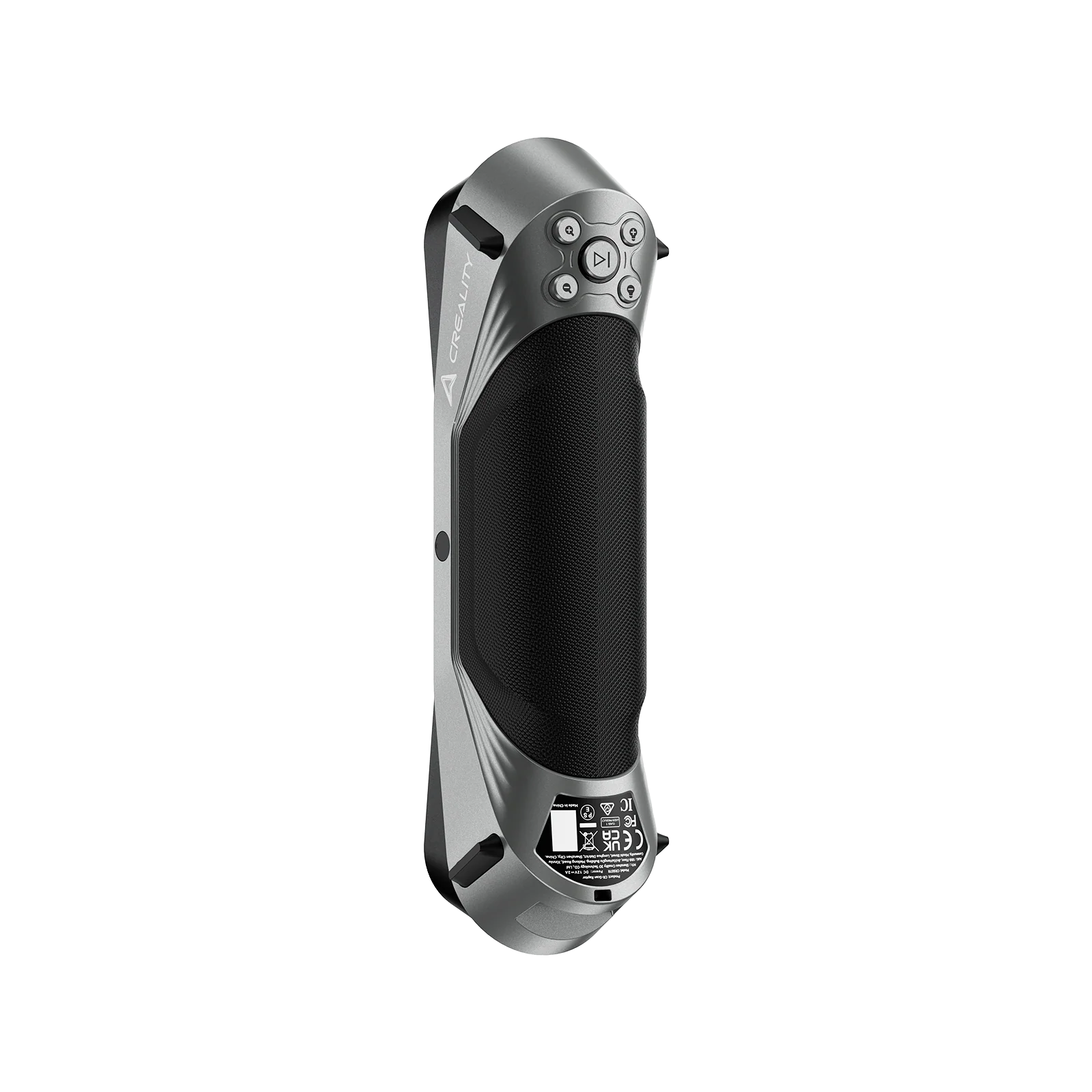

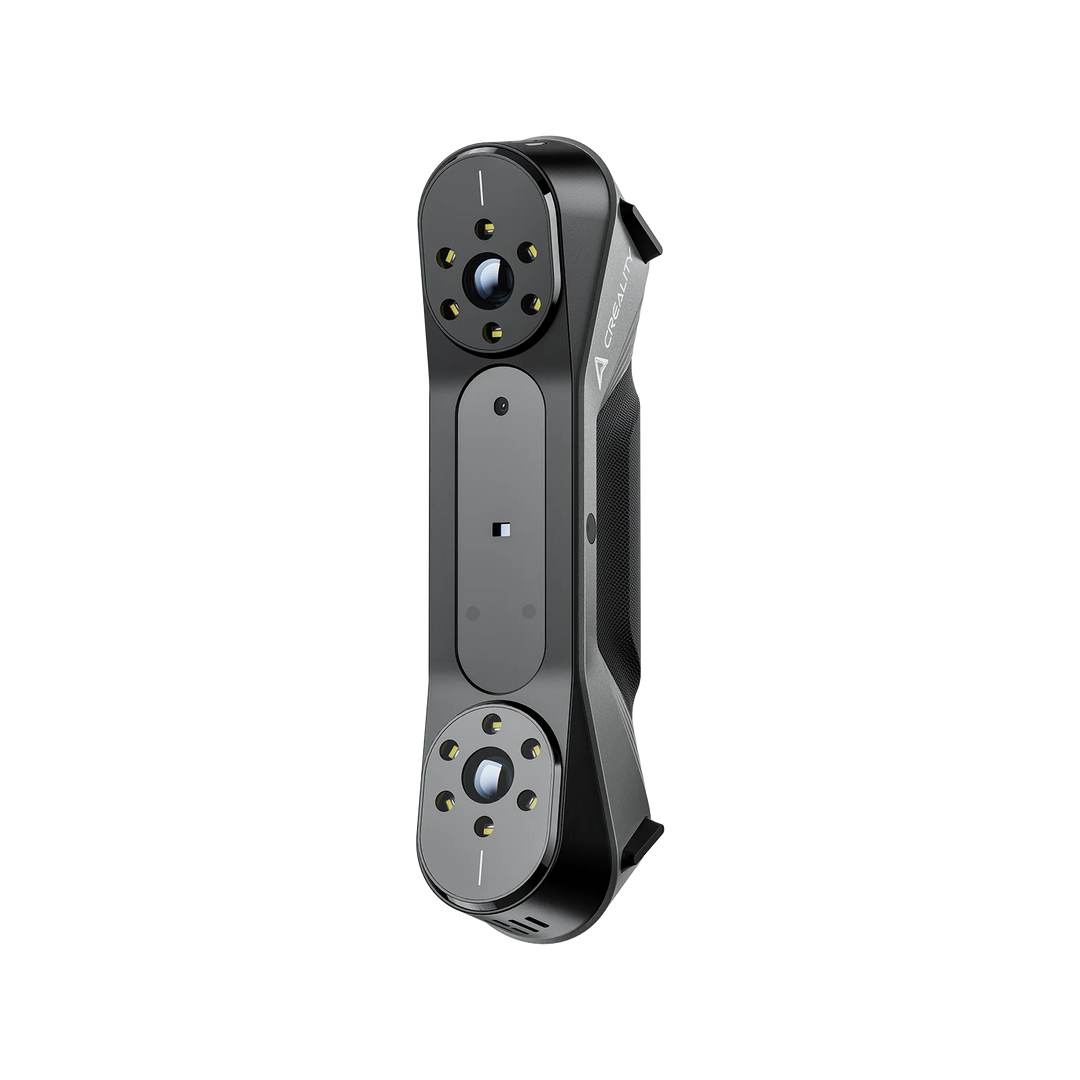

CR-Scan Raptor 3D Scanner

CR-Scan Raptor 3D Scanner

• Grades: 8+
• Additional Resources: Creality Scan Software

Highlights:

• 7 Blue Parallel Laser Lines
• Metrology Grade Accuracy, up to 0.02mm
• Scanning Speed up to 60fps
• Objects between 5-2000mm
• Anti-shaking for Smooth Scanning
• Scan Black/Metal Objects Without Sprays
• 24-Bit Full-Color Scanning
• Light and Compact(215mmx50mmx74mm), only weight 372g
• For detailed information about the scanner, visit the official free knowledge-sharing platform: Creality Wiki.

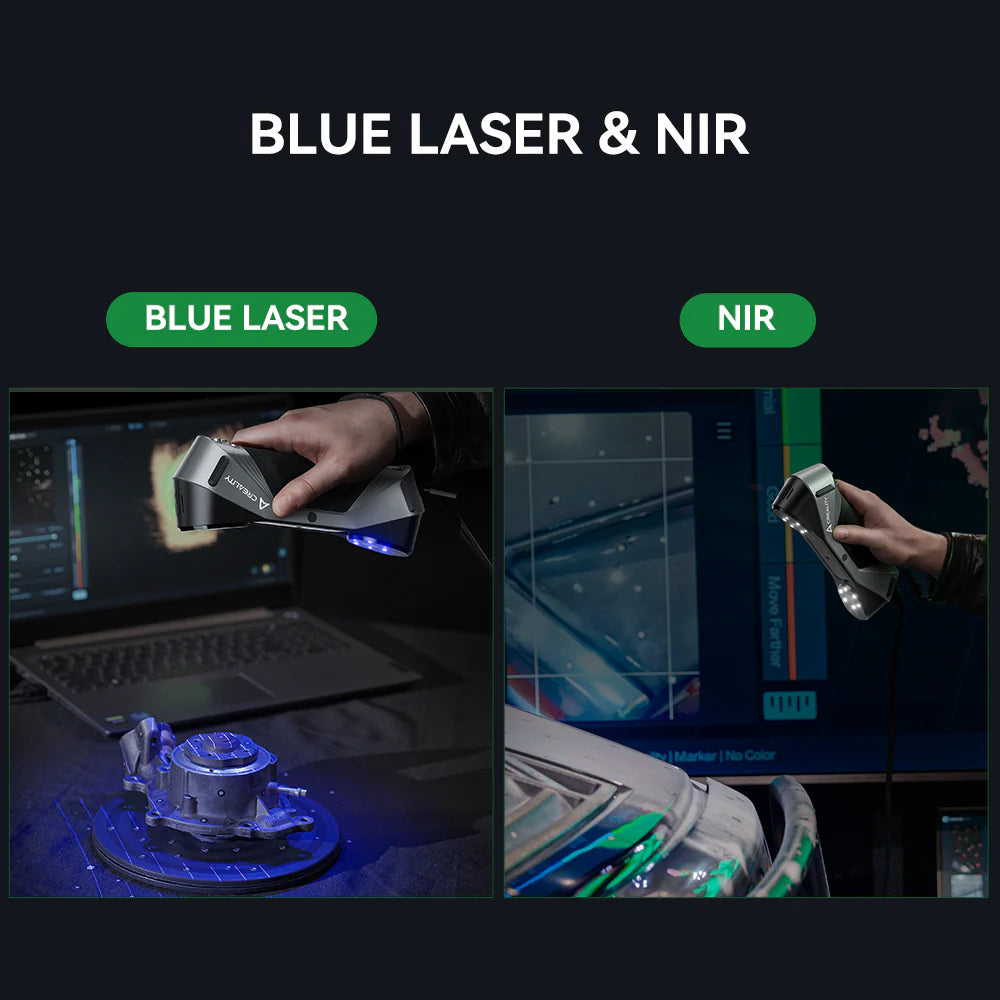

Blue Laser & NIR

The CR-Scan Raptor integrates an innovative combination of blue laser and infrared light sources, covering scanning of small, medium, and large objects, which can meet the needs of diverse industrial 3D scanning scenarios.

7 Blue Parallel Laser Lines

Metrology-grade accuracy, the accuracy under laser scanning mode can achieve up to 0.02mm. 7 parallel blue laser lines for fine scanning details, single laser line is as fine as 0.1mm to obtain sharper and clear point cloud edges.

Infrared Structured Light Scanning
Markerless Scanning

The CR-Scan Raptor utilizes speckle matching 3D imaging, No markers needed for feature-rich workpieces. Objects can be scan quickly and directly.

Unique Face & Body Algorithm

Face & body mode is equipped with a unique face mapping algorithm that captures more details, a human body scan only needs as quick as 2 minutes.

Versatile Scanning for All Sizes

Combining line lasers with infrared structured light, the CR-Scan Raptor can scan objects ranging in size from 5*5*5 mm³-2000*2000*2000 mm³. Effortlessly scanning small figurines, bolts, faces, human bodies, automobile components, and more.

Technology Requirements/Specifications:'

Scanning Mode: Blue Light(Blue 7-line laser) / NIR(infrared binocular structured light)
>>Blue Light(Blue 7-line laser) Mode:
Accuracy: Up to 0.02mm @ 100mm [1]
3D Resolution: 0.02-2mm
Scanning Speed: Up to 60fps
Min. scanvolume: 5mm x 5mm x 5mm
Single Capture Range: 270mmx170mm@300mm
Working distance: 150mm-400mm
Color Mapping: Yes
Alignment mode: Marker

>>NIR(infrared binocular structured light) Mode:
Accuracy：Up to 0.1mm
3D Resolution：0.1-2mm
Scanning Speed：Up to 20fps
Single Capture Range：930mmx580mm@1000mm
Working distance: 170mm-1000mm
Color Mapping: Yes
Alignment mode: Marker / geometry / texture

General Parameters:
3D imaging camera resolution: 1920x1200
Color Supplemental Light: 12 white LEDs
Marker Recognition Enhancement: 12 blue LEDs
Laser Safety: Class I (eye safe)
Button: Mechanical
IMU: Yes
Output format: OBJ/STL/PLY
Input Power: 12V 2A
Data interface: TypeC/USB3.0
Device Dimensions: 215mmx50mmx74mm
Device Weight: 372g
Calibration board: High-precision glass calibration board
Wireless Scanning: Supported in conjunction with future wireless scanning accessories
System Support：Windows/macOS
Operating temperature：-10°C to 40°C
Operating humidity: 0-90%RH
Accuracy is evaluated in laboratory conditions (measurement object is 100mm sphere pair) and actual results may be affected by operating environments such as temperature, vibration, and other factors.
