PicoSolutions WASP 4070 Industrial X

Grades: 9+

About:

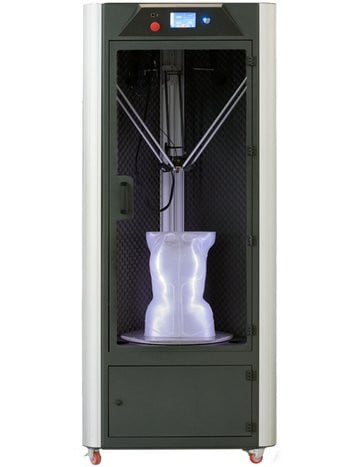

Delta WASP 4070 Industrial X is WASP's most advanced industrial printer manufactured in metal with strong steel cored belts and thermal and acoustic insulation. The printer comes standard with WASP Zen X Extruder for dual extrusion with multiple materials or Continuous Print to begin printing with the second spool when first runs out. Easily switch to WASP Flex Extruder and print with flexible materials down to shore 50A.

Printer Details:

PRINT SPECS:

Standard Configuration	WASP Zen X Dual Extruder, MT Cartridge, 0.4mm nozzle diameter
Print Volume	400 x H 700 mm
Layer Height Min	100 micron
Print Speed Max	200 mm/s
Movement Speed Max	300 mm/s
Acceleration	6,000 mm/s
Heated Bed Temp Max	120 C°
Heated Chamber	70 C°

PHYSICAL DIMENSIONS:

Machine Dimensions	85cm x 77cm x 195cm
Shipping Dimensions	100cm x 100cm x 230cm
Machine Weight	90 kg
Shipping Weight	250 kg

CONFIGURATION TOOLS:

WASP Zen X Extruder	Standard dual extruder
Nozzles Diameters	0.4mm, 0.7mm
Filament Size	1.75mm
Materials	ABS WASP, HIPS WASP, PA CARBON WASP, PMMA WASP, PLA, PETG, PC, PC+ABS, PPS, PVA, ASA

WASP Flex Extruder	Direct drive extruder for flexible materials down to shore 50A
Nozzle Diameters	0.4mm
Filament Size	2.85mm
Materials	TPE, PP, TPU

Technical Innovations:

FEATURES:

Hot & Cold Technology	Heated chamber and cooling of the mechanics
Resurrection System	The system resumes interrupted prints in case of accidental shutdown or sudden power failure.
Free Zeta System	Measures the height of your print where the printing stopped to restart from this height.
Continuous Print	When the used extruder runs out of filament, the print continues with the other extruder (if correctly loaded)
Bed Touch System	Automatic system that avoids the collision of the extruder on the build plate
Gcode Analyzer	Gcode error checking system
Auto Check System	Automatic error recognition routine
Mesh Auto Calibration	Mesh plate calibration
WIFI	Machine connected to the network for monitoring and control
New GUI	New touch interface with bigger TFT display
Camera on-board	For monitoring and time lapse
Remote Support	WASP technicians can work remotely on your machine in case of issues

MECHANICS:

Frame & Cover	Aluminum, Steel, Polycarbonate, PU. All metal body for a stiff and vibration free precise machine
Printing Surface	Machined Aluminum
Wheel Movements	Nylon wheels on anodized aluminum slides. PU steel core belts, resistant to high temperature
Insulation	Polymer foam for thermo-acoustic insulation
Motors	Stepper

Logistical Information:

SOFTWARE:

Operating System	Windows, Mac, Linux
Slicing Software	Compatible with all slicing software
File Type	.stl, .obj, .gcode
Interface	Pendrive USB, Wifi Network, Display TFT Touch

SUPPLY:

Input	110 V 50/60 Hz
Absorbed Power	WASP Zen X Extruder 120W
Absorbed Power	Heated Bed 1300 W Max
Absorbed Power	Room Heater 1500W max

TEMPERATURE:

Environment Use	68 - 86 F
Warehouse	32 - 86 F

Technical Support Package:

PicoSolutions technical support packages can be used for a variety of support including installation, training, design/slicing consultations, and technical support. Service Packages are based on hours so packages can never expire. If your printer needs to be returned to the PicoSolutions studio for maintenance, PicoSolutions will cover the round-trip shipping.

Note: Please see support package options towards the top of the page.
